MSM7584C

Features: (/4 Shift QPSK Modem)• Built-in root Nyquist filter (a (rolloff rate) = 0.5) for the baseband limiter• Differential I and Q analog outputs• The DC offset and gain can be adjusted with respect to the differential I and Q analog outputs• Completely digitized /4 shi...

product image

MSM7584C Picture
See larger image
SeekIC No. : 004429114 Detail

MSM7584C: Features: (/4 Shift QPSK Modem)• Built-in root Nyquist filter (a (rolloff rate) = 0.5) for the baseband limiter• Differential I and Q analog outputs• The DC offset and gain can be...

MSM7584C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM7584C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

   (/4 Shift QPSK Modem)
• Built-in root Nyquist filter (a (rolloff rate) = 0.5) for the baseband limiter
• Differential I and Q analog outputs
• The DC offset and gain can be adjusted with respect to the differential I and Q analog outputs
• Completely digitized /4 shift QPSK demodulator system
• Input IF signal frequency of 1.2 MHz or 10.8 MHz is available.
• Built-in A/D converter for RSSI detection (ADPCM CODEC)
• ADPCM : ITU-T Recommendations G.721 (32 kbps)
• Transmit/receive full duplex capability
• PCM interface code format: selectable between m-law and A-law
• Built-in transmit/receive mute function and transmit/receive programmable gain setting function
• Side tone path formation and level adjustment capabilities
• Built-in DTMF tone and other tones
• Built-in VOX function
• Built-in speech recording/playing interface
• Built-in 150 driving OP AMP
• Built-in various analog switches (Common)
• Single 3V power supply (VDD: 2.7 V to 3.6 V)
• Mode setting through serial interface
• Low power consumption
   When the modem unit is operating : 13 mA Typ. (VDD = 3.0 V)
   When the ADPCM CODEC unit is operating : 7 mA Typ. (VDD = 3.0 V)
   When in the power down mode : 0.03 mA Typ. (VDD = 3.0 V)
• Package:80-pin plastic TQFP (TQFP80-P-1212-0.50-K) (Product name : MSM7584CTS-K)


Pinout

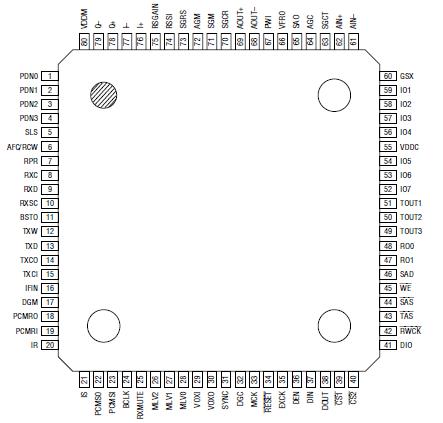

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Limits
Unit
VDD
 Power Supply Voltage
-
0.3 to +5
V
VAIN
 Analog Input Voltage
0.3 to VDD + 0.3
V
VDIN
 Digital Input Voltage
0.3 to VDD + 0.3
V
TOP
 Operating Temperature
25 to +70
°C
TSTG
 Storage Temperature
55 to +150
°C



Description

The MSM7584C is a CMOS IC developed for use with digital cordless telephones. The device provides a /4 shift QPSK modem function and a CODEC function which performs transcoding between the voice band analog signal and 32 kbps ADPCM data.

The MSM7584C is ideal for use in a handset of the PHS (Personal Handyphone System).
