MSM7575

Features: • Single 3 V Power Supply Operation VDD: 2.7 V to 3.6 V• Transmit/Receive Full-Duplex Single Channel Operation• Transmit/Receive Synchronous Mode Only• PCM Interface Data Format : A-law/-law/linear (2's complement) Selectable• Serial PCM Transmission Data Ra...

product image

MSM7575 Picture
See larger image
SeekIC No. : 004429103 Detail

MSM7575: Features: • Single 3 V Power Supply Operation VDD: 2.7 V to 3.6 V• Transmit/Receive Full-Duplex Single Channel Operation• Transmit/Receive Synchronous Mode Only• PCM Interfac...

MSM7575 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM7575
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 3 V Power Supply Operation VDD: 2.7 V to 3.6 V
• Transmit/Receive Full-Duplex Single Channel Operation
• Transmit/Receive Synchronous Mode Only
• PCM Interface Data Format : A-law/-law/linear (2's complement) Selectable
• Serial PCM Transmission Data Rate : 64 kbps to 2048 kbps
• Low Power Consumption
  Operating Mode : 24 mW Typ. (VDD = 3.0 V)
   Power-Down Mode : 0.1 mW Typ. (VDD = 3.0 V)
• Two Analog Input Amplifier Stages: Externally Gain Adjustable
• Analog Output Stage
   Push-pull Drive (direct drive of 350 + 120 nF)
• Master Clock Frequency : 9.600/19.200 MHz Selectable
• Transmit/Receive Mute, Transmit/Receive Programmable Gain Control
• Side Tone Path with Programmable Attenuation (8-step Level Adjustment)
• Built-in DTMF Tone Generator
• Built-in Various Ringing Tones Generator
• Built-in Various Ring Back Tone Generator
• Control by Serial MCU Interface
• Built-in VOX Control
   Transmit side : Voice/Silence Signal Detect
   Receive side : Background Noise Generation
• Built-in Op-amps and Analog Switches for Various Analog Interfaces.
• Package:64-pin plastic QFP (QFP64-P-1414-0.80-BK)(Product name : 7575GS-BK)


Pinout

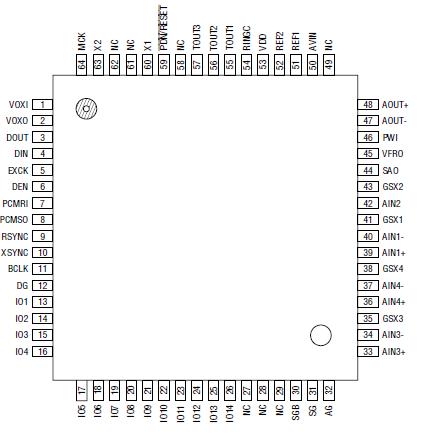

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Limits
Unit
VDD
 Power Supply Voltage
-
_0.3 to +5
V
VAIN
 Analog Input Voltage
0.3 to VDD + 0.3
V
VDIN
 Digital Input Voltage
0.3 to VDD + 0.3
V
TOP
 Operating Temperature
30 to +85
°C
TSTG
 Storage Temperature
55 to +150
°C



Description

The MSM7575, developed for advanced digital cordless telephone systems, is a single channel full duplex CODEC which performs mutual transcoding between the analog voice band signal and the 64 kbps PCM serial data.

This MSM7575 performs DTMF tone and several kinds of tone generation, transmit/receive data mute and gain control, side-tone pass and its gain control, and VOX function.

Using advanced circuit technology, this MSM7575 operates from a single 3 V power supply and provides low power consumption.
