MSM7566

Features: • Single power supply: +2.7 V to +3.8 V• Low power consumption Operating mode: 15 mW Typ. 24 mW Max. VDD = 3.0 V Power save mode: 6 mW Typ. 18 mW Max. VDD = 3.0 V Power down mode: 0.03 mW Typ. 0.2 mW Max. VDD = 3.0 V• ITU-T Companding law MSM7566: -law MSM7567: A-law...

product image

MSM7566 Picture
See larger image
SeekIC No. : 004429099 Detail

MSM7566: Features: • Single power supply: +2.7 V to +3.8 V• Low power consumption Operating mode: 15 mW Typ. 24 mW Max. VDD = 3.0 V Power save mode: 6 mW Typ. 18 mW Max. VDD = 3.0 V Power down mo...

MSM7566 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM7566
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single power supply: +2.7 V to +3.8 V
• Low power consumption
    Operating mode: 15 mW Typ. 24 mW Max. VDD = 3.0 V
    Power save mode: 6 mW Typ. 18 mW Max. VDD = 3.0 V
    Power down mode: 0.03 mW Typ. 0.2 mW Max. VDD = 3.0 V
• ITU-T Companding law
   MSM7566: -law
   MSM7567: A-law
• Transmission characteristics comply with ITU-T G.714
• Built-in PLL eliminates a master clock
• Serial data rate: 64/128/256/512/1024/2048 kHz
                             96/192/384/768/1536/1544/200 kHz
• Adjustable transmit gain
• Adjustable receive gain
• Built-in reference voltage supply
• Built-in analog loop back test mode
• Differential type analog output. Directly drives a piezoelectric type receiver equivalent to 1.2 k +55 nF
• Analog output amplifiers can operate in the power save mode
• Pin-for-pin compatible with the MSM7541 and the MSM7542
• Package options:
   20-pin plastic skinny DIP (DIP20-P-300-2.54-S1) (Product name : MSM7566RS)
                                                                                (Product name : MSM7567RS)
   24-pin plastic SOP (SOP24-P-430-1.27-K) (Product name : MSM7566GS-K)
                                                                     (Product name : MSM7567GS-K)
   26-pin plastic TSOP (TSOPII26/20-P-300-1.27-K) (Product name : MSM7566TS-K)
                                                                                (Product name : MSM7567TS-K)

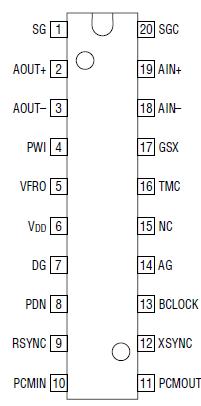

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Limits
Unit
VDD
 Power Supply Voltage
-
_0 to 7
V
VAIN
 Analog Input Voltage
0.3 to VDD + 0.3
V
VDIN
 Digital Input Voltage
0.3 to VDD + 0.3
V
TSTG
 Storage Temperature
55 to +150
°C



Description

The MSM7566 and MSM7567 are single-channel CODEC CMOS ICs for voice signals ranging from 300 to 3400 Hz. These devices contain filter for A/D and D/A conversion.

Designed especially for a single-power supply and low-power applications, these MSM7566 are optimized for telephone terminals in digital wireless systems.

The MSM7566 and MSM7567 use newly-designed operational amplifiers to maintain small current deviations caused by power voltage fluctuations.

The MSM7566 use the same transmission clocks as those used in the MSM7508B and MSM7509B.The analog output signal, which is of a differential type, directly drives a handset receiver.
