MSM7534 Selling Leads, Price trend, MSM7534 DataSheet download, circuit diagram from SeekIC.com

Features: • Single power supply: +5 V• Power consumption Operating mode: 35 mW Typ. 74 mW Max. VDD = 5 V Power save mode: 7 mW Typ. 16 mW Max. VDD = 5 V Power down mode: 0.05 mW Typ. 0.3 mW Max. VDD = 5 V• ITU-T Companding law MSM7533H: -law MSM7534: A-law MSM7533V: /A-law pin se...

See larger image

SeekIC No. : 004429088 Detail

MSM7534: Features: • Single power supply: +5 V• Power consumption Operating mode: 35 mW Typ. 74 mW Max. VDD = 5 V Power save mode: 7 mW Typ. 16 mW Max. VDD = 5 V Power down mode: 0.05 mW Typ. 0.3...

MSM7534 Data Sheet

Get Latest Price

Part Number:: MSM7534
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MSM7502 evaluate
Features: • Single +5 V Power Supply• Low Power Dissipation Power ON Mode : 30 mW Typ....
MSM7503 evaluate
Features: • Single +5 V Power Supply• Low Power Dissipation Power ON Mode : 50 mW Typ....
MSM7507-01 evaluate
Features: •Single power supply: +5 V ±5%•Low power consumption Operating mode: 20 mW ...

Product Details

Description

Features:

• Single power supply: +5 V
• Power consumption
   Operating mode: 35 mW Typ. 74 mW Max. VDD = 5 V
   Power save mode: 7 mW Typ. 16 mW Max. VDD = 5 V
   Power down mode: 0.05 mW Typ. 0.3 mW Max. VDD = 5 V
• ITU-T Companding law
   MSM7533H: -law
   MSM7534: A-law
   MSM7533V: /A-law pin selectable
• Built-in PLL eliminates a master clock
• The PCM interface can be switched between 2 channel serial/parallel
• Transmission clock: 64/128/256/512/1024/2048 kHz
                                 96/192/384/768/1536/1544/200 kHz
   (During 2 channel serial mode, the 64 and 96 kHz clocks are disabled)
• Adjustable transmit gain
• Built-in reference voltage supply
• Analog output can directly drive a 600 line transformer
• Package options:
   20-pin plastic skinny DIP (DIP20-P-300-2.54-S1) (Product name : MSM7533HRS)
                                                                                (Product name : MSM7533VRS)
                                                                                  (Product name : MSM7534RS)
   24-pin plastic SOP (SOP24-P-430-1.27-K) (Product name : MSM7533HGS-K)
                                                                     (Product name : MSM7533VGS-K)
                                                                        (Product name : MSM7534GS-K)

Pinout

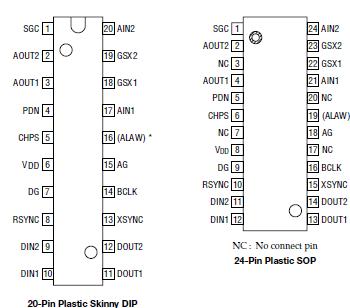

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Limits	Unit
V_DD	Power Supply Voltage	-	0 to 7	V
V_AIN	Analog Input Voltage		0.3 to V_DD + 0.3	V
V_DIN	Digital Input Voltage		0.3 to V_DD + 0.3	V
T_STG	Storage Temperature	-	55 to +150	°C

Description

The MSM7533 and MSM7534 are two-channel CODEC CMOS ICs for voice signals ranging from 300 to 3400 Hz. These devices contain filters for A/D and D/A conversion.

Designed especially for a single-power supply and low-power applications, these MSM7534 contain two-channel AD/DA converters in a single chip and achieve a reduced footprint and a reduced number of external components.

The MSM7533 and MSM7534 are best suited for an analog interface to an echo canceller DSP used in digital telephone terminals, digital PABXs, and hands free terminals.
