Product Details

Description

Features:

• Conforms to ITU-T V.21, 300 bps Full Duplex
• ITU-T V.25 Answer Tone (2100 Hz) with Generator/Detector
• Single Power Supply : +3 V to +5 V
• Low Power Consumption
   Operating Mode: 25 mW Typ.
   Power Down Mode : 0.1 mW Max.
• Line Hybrid Circuit on Chip (direct drive capability of 600)
• ALB (AnalogLoop back) with test mode.
• 3.579545 MHz Crystal Oscillator
• Digital Interface: TTL
• Package options:
   16-pin plastic DIP (DIP16-P-300-2.45) (Product name: MSM7510RS)
   24-pin plastic SOP (SOP24-P-430-1.27-K) (Product name: MSM7510GS-K)

Pinout

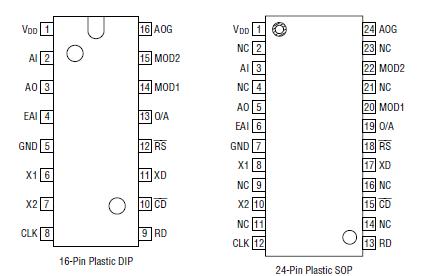

Connection Diagram

Specifications

Parameter	Symbol	Condition	Rating	Unit
Power Supply Voltage	V_DD	Ta = 25°C with respect to GND	0.3 to 7	V
Input Voltage	V_IN	Ta = 25°C with respect to GND	0.3 to V_DD+ 0.3	V
Storage Temperature	T_STG	-	55 to 150	°C

Description

The MSM7510 is useful for the ITU-T V.21 modem, for examples, low cost built-in modems,telecontrol systems, home security systems, etc.

The family version, MSM7512B for ITU-T V.23, will be available following this device.Oki has been mass-producing and delivering the MSM6926 and 6927 for a long time, but these devices need two power supplies, +5 V for digital and +12 V for analog.

New generation devices, MSM7510/7512B, work with single rail +3 V to +5 V and low power consumption.
