Product Details

Description



Features:

• Power suppy voltage : 5V±10%
• Operating temperature : 40 to +85°C
• 29-output segment driver
   1/4 duty dynamic drive : Up to 116 segments can be displayed
   1/3 duty dynamic drive : Up to 87 segments can be displayed
• One LED can be driven directly (IO=15mA max)
• Built-in 5´6 key scan circuit allows reading of the operation status of up to 30 switches.
• Interface with CPU is implemented by LOAD, DATA I/O and CLOCK in serial method.
• Built-in RC oscillator for LCD AC drive
• Built-in voltage dividing resistor for bias voltage generation
• Package:
   56-pin plastic QFP (QFP56-P-910-0.65-2K) (Product name : MSM6786GS-2K)

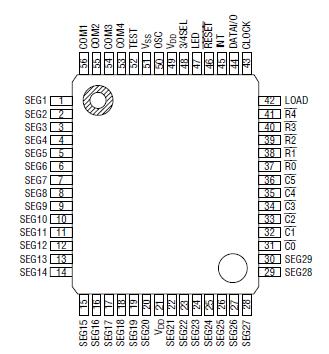

Pinout

Connection Diagram


Specifications

Rating
Symbol
Condition
Rating
Unit
Power Supply Voltage
VDD
Ta = 25°C
0.3 to +6.5
V
Output Current
IO
Ta = 25°C
-20
mA
Input Voltage
VI
Ta = 25°C *1
0.3 to VDD+0.3
V
Storage Temperature
TSTG
-
55 to +150
°C
*1 Applied to LED output


Description

The MSM6786 is a dynamic display LCD driver and can be switched to 1/3 or 1/4 duty. It can dis-play up to 116 segments with 1/4 duty and up to 87 segments with 1/3 duty. It can also drive one LED directly. The built-in 5×6 key circuit allows input through a keyboard, and minimizes the number of wires between the front panel and CPU.
