Product Details

Description



Features:

• Real time clock providing seconds, minutes, hours, days, months, and days of the week.
• Serial interface controlled by 3 signal lines
• A periodic interrupt output in 4 different cycle periods (or periodic waveform output)
• Automatic leap year calendar
• 30-second adjustment controlled by software
• Stop and restart of clock
• Wide range of interface power supply: 2.7V to 5.5V
• Wide range of clock power supply: 2.0V to 5.5V
• 32.768kHz external quart crystal
• Low current consumption
• 8-pin plastic DIP (DIP8-P-300) (MSM6782-01RS)
• 8-pin plastic SOP (SOP8-P-250-K) (MSM6782-01MS-K)


Pinout

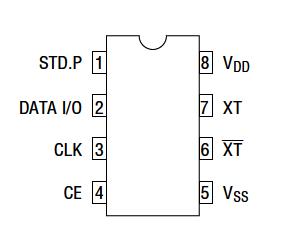

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit
Power Supply Voltage VDD

Ta = 25°C

 0.3 to +7.0 V
Input Voltage VI
 Vss0.3 to VDD+0.3
Output Voltage VO Vss0.3 to VDD+0.3
Storage Temperature TSTG - 55 to +150 °C



Description

The MSM6782-01 is a CMOS Serial Interface Real Time Clock/Calendar.

The serial interface of MSM6782-01 that can be controlled by mere 3 signal lines has minimized the number of CPU terminals required .

The MSM6782-01 provides 30-second adjustment, oscillation stop detection, and periodic flag setting and signal output in 4 diferent cycle periods.

The clock ranges of MSM6782-01 are seconds, minutes, hours, days, months, years, and days of the week.

The interface supply voltage of MSM6782-01 is 2.7V to 5.5V and the clock supply voltage is 2.0V to 5.5V.

The MSM6782-01 comes in an 8-pin DIP package or an 8-pin SOP package.

The MSM6782-01 is highly integrated and is suitable for use in a variety of portable applications.
