MSM66P563

Features: • Program memory space : 32K bytes Internal ROM : 16K bytes (MSM66562), 32K bytes (66P563)• Data memory space : Internal RAM only Internal RAM : 0.5K bytes (MSM66562), 1K bytes (MSM66P563)• High-speed execution Minimum instruction execution time : 100 nsec (@ 20 MHz)...

product image

MSM66P563 Picture
See larger image
SeekIC No. : 004429049 Detail

MSM66P563: Features: • Program memory space : 32K bytes Internal ROM : 16K bytes (MSM66562), 32K bytes (66P563)• Data memory space : Internal RAM only Internal RAM : 0.5K bytes (MSM66562), 1K bytes...

MSM66P563 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM66P563
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Program memory space : 32K bytes
   Internal ROM : 16K bytes (MSM66562), 32K bytes (66P563)
• Data memory space : Internal RAM only
   Internal RAM : 0.5K bytes (MSM66562), 1K bytes (MSM66P563)
• High-speed execution
   Minimum instruction execution time : 100 nsec (@ 20 MHz)
• Rich instruction set : Instruction set superior in orthogonal matrix
                            8/16-bit data transfer instructions
                                8/16-bit arithmetic instructions
     Multiplication and division operation instructions
                                    Bit manipulation instructions
                                                 Bit logic instructions
                             ROM table reference instructions
• Abundant addressing modes : Register addressing
                                                        Page addressing
                         Pointing register indirect addressing
                                                       Stack addressing
                                              Immediate addressing
• I/O port
   Input ports (or analog input ports) : 6 channels
   Input-output ports : 27 bits(Each bit can be configured to be an input or output)
• Capture (CAP)/Compare (CMP) timers
   Free run counters : 16 bits × 1
                                  16-bit CAP : 1
                                  16-bit CMP : 3
                                  16-bit CAP/CMP : 2
• 16-bit general timer (also usable for 2ch × 8 bits) : 1
    8-bit geneal counter (or baud rate generator): 1
• 8-bit serial ports
    UART mode : 1
• 8-bit A/D converter : 6 channels
• Interrupts
   Maskable : Internal 12/external 2 (2-level priority can be set)
• ROM window function
• Standby modes
   HALT mode
   STOP mode
• Package:
   42-pin plastic Shrink DIP (SDIP42-P-600-1.78) (Product name: MSM66562-×××RS)
                                                                            (Product name: MSM66P563-×××RS)
   64-pin plastic QFP (QFP64-P-1414-0.80-BK)     (Product name: MSM66562-×××GS-BK)
                                                                            (Product name: MSM66P563-×××GS-BK
                                                                               ××× indicates a code number.

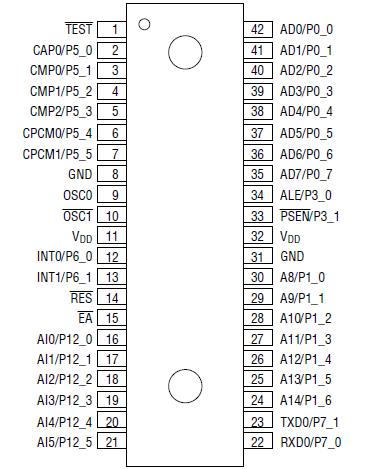

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Power Supply Voltage
VDD
GND=0 V
Ta = 25°C
0.3 to +7.0
V
Input Voltage
VI
0.3 to VDD+0.3
Output Voltage
VO
0.3 to VDD+0.3
Analog Input Voltage
VAI
0.3 to VDD
Power Dissipation
PD
Ta=85°C
Per package
-
mW
Per output
50
Storage Temperature
TSTG
-
55 to +150
°C



Description

The MSM66P563 is a high-speed, high-performance 16-bit microcontroller that employs OKI original nX-8/500S CPU core.

The MSM66P563 includes a 16-bit CPU, ROM, RAM, a 8-bit A/D converter, serial ports,capture/compare timers, and I/O ports
