Product Details

Description

Features:

• Program memory space : 64K bytes
   Internal ROM : 64K bytes
• Data memory space : 64K bytes
   Internal RAM : 2K bytes
• High-speed execution
   Minimum instruction execution time : 125nsec @ 32MHz
• Powerful instruction set : Instruction set superior in orthogonal matrix
                       8/16-bit data transfer instructions
                             8/16-bit arithmetic instructions
  Multiplication and division operation instructions
                                Bit manipulation instructions
                                              Bit logic instructions
                           ROM table reference instructions
• Abundant addressing modes : Register addressing
                                                        Page addressing
                          Pointing register indirect addressing
                                                        Stack addressing
                                                Immediate addressing
• I/O port
    Analog input port : 1 port × 16 bits
    Input-output port : 11 ports × 8 bits, 1 port × 4 bits
    (Input/output setting available in bit unit)
• Flexible timers
   Free run counters : 19-bit × 1, 16-bit × 1
                                  19-bit CAP with a divider : 4
                                  16-bit double buffer RTO : 6
                                  16-bit PWM/RTO : 2
                                  16-bit CAP/RTO : 2
• 8-bit general timer : 1
   8-bit event counter : 1
• 16-bit PWM : 6
    Input clock divider : 4
• Serial ports
    UART mode with BRG : 1
    Synchronous/UART switchable mode with BRG : 1
• 10-bit A/D converter : 16 channels
• Transition detector : 6
• Watchdog timer : 1
• Interrupts
   Non-maskable : 1
   Maskable : Internal 32/external 2 (4-level priority can be set)
• ROM window function
• Standby modes
   HALT mode
   STOP mode
• Package
    128-pin plastic QFP (QFP128-P-2828-0.80-BK) : (Product name: MSM66509-×××GS-BK)
                                                                                ××× indicates the code number.

Pinout

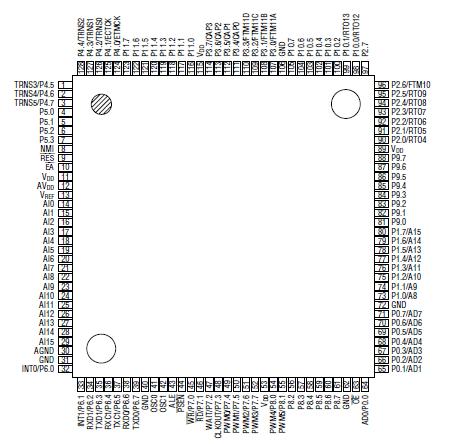

Connection Diagram

Specifications

Parameter	Symbol	Condition		Rating	Unit
Digital Power Supply Voltage	V_DD	GND = AGND = 0V		0.3 to +7.0	V
Input Voltage	V_I			0.3 to V_DD+0.3
Output Voltage	V_O			0.3 to V_DD+0.3
Analog Power Supply Voltage	AV_DD			0.3 to V_DD+0.3
Analog Reference Voltage	V_REF			0.3 to AV_DD+0.3
Analog Input Voltage	V_AI			0.3 to V_REF
Power Dissipation	P_D	Ta=85°C	Per package	855	mW
Power Dissipation	P_D	Ta=85°C	Per output	50	mW
Storage Temperature	T_STG	-		55 to +150	°C

Description

The MSM66P509 is a high-performance 16-bit microcontroller that employs OKI original nX-8/500 CPU core.

The MSM66P509 includes a 16-bit CPU, ROM, RAM, a 10-bit A/D converter, serial ports,flexible timers, pulse-width modulator (PWM), and I/O ports.
