MSM66P507

Features: • Program memory space : 64K bytes Internal ROM : 48K bytes• Data memory space : 64K bytes Internal RAM : 1.5K bytes• High-speed execution Minimum instruction execution time : 167ns (@24MHz)• Powerful instruction set : Instruction set superior in orthogonal matrix...

product image

MSM66P507 Picture
See larger image
SeekIC No. : 004429046 Detail

MSM66P507: Features: • Program memory space : 64K bytes Internal ROM : 48K bytes• Data memory space : 64K bytes Internal RAM : 1.5K bytes• High-speed execution Minimum instruction execution t...

MSM66P507 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM66P507
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Program memory space : 64K bytes
                   Internal ROM : 48K bytes
• Data memory space : 64K bytes
               Internal RAM : 1.5K bytes
• High-speed execution
   Minimum instruction execution time : 167ns (@24MHz)
• Powerful instruction set : Instruction set superior in orthogonal matrix
                                 8/16-bit data transfer instructions
                                 8/16-bit arithmetic instructions
      Multiplication and division operation instructions
                                     Bit manipulation instructions
                                  Bit logic operation instructions
                              ROM table reference instructions
• Abundant addressing modes : Register addressing
                                                        Page addressing
                          Pointing register indirect addressing
                                                        Stack addressing
                                      Immediate value addressing
• I/O port
   Analog input port : 1 port × 10 bits
   Input-output port : 7 ports × 8 bits, 1 port ×3 bits
   (Each bit can be assigned to input or output.)
• Flexible timers
   Free run counters : 19-bit × 1, 16-bit × 1
                                  19-bit CAP with a divider : 4
                                  16-bit double buffer RTO : 4
                                  16-bit RTO/PWM : 2
                                  16-bit CAP/RTO : 2
• 8-bit general timer : 1
   8-bit event counter : 1
• 16-bit PWM : 4
    Input clock divider : 2
• Serial ports
   UART mode with BRG : 1
   Synchronous/UART switchable mode with BRG : 1
• 10-bit A/D converter : 10 channels
• Transition detector : 6
• Watchdog timer : 1
• Interrupts
   Nonmaskable : 1
   Maskable : Internal 28/external 2(4-level priority can be set)
• ROM window function
• Standby modes
   HALT mode
   STOP mode
• Package
   84-pin plastic QFJ (PLCC) (QFJ84-P-S115-1.27-B) (Product name: MSM66507-×××JS-B)
                                                                               (Product name: MSM66P507-×××JS-B)
                                                                                ××× indicates the code number.


Pinout

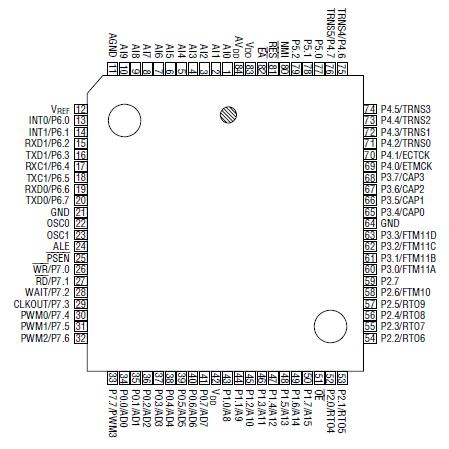

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Digital Power Supply Voltage
VDD
GND = AGND = 0V
0.3 to +7.0
V
Input Voltage
VI
0.3 to VDD+0.3
Output Voltage
VO
0.3 to VDD+0.3
Analog Power Supply Voltage
AVDD
0.3 to VDD+0.3
Analog Ref. Voltage
VREF
0.3 to AVDD+0.3
Analog Input Voltage
VAI
0.3 to VREF
Power Dissipation
PD
Ta=85°C
Per package
1300
mW
Per output
50
Storage Temperature
TSTG
-
55 to +150
°C



Description

The MSM66P507 is a high-performance 16-bit microcontroller that employs OKI original nX-8/500 CPU core.
