MSM66P207

• 64K address space for program memory : Internal ROM : MSM66201 16K bytes MSM66207 32K bytes
• 64K address space for data memory : Internal RAM : MSM66201 512 bytes MSM66207 1024 bytes
• High-speed execution Minimum cycle for instruction : 400ns @ 10MHz
• Powerful instruction set : Instruction set superior in orthogonal matrix
                             8/16-bit data transfer instructions
                                   8/16-bit arithmetic instructions
        Multiplication and division operation instructions
                                       Bit manipulation instructions
                                                    Bit logic instrucitons
                                ROM table reference instructions
• Abundant addressing modes : Register addressing
                                                        Page addressing
                         Pointing register indirect addressing
                                                       Stack addressing
                                     Immediate value addressing
• I/O port
   Input-output port : 5 ports × 8 bits
      (Each bit can be assigned to input or output)
   Input port : 1 port × 8 bits
• Built-in multifunctional 16-bit timer : 4
   Following 4 modes can be set for each timer : Auto-reload timer mode
                                                                                   Clock output mode
                                                                            Capture register mode
                                                                            Real time output mode
• Serial port : 1 channel (Synchronous/UART switchable mode with baud rate generators)
• 16-bit pulse width modulator : 2
• Watchdog timer
• Transition detector : 4
• 10-bit A/D converter : 8 channels
• Interrupts
   Nonmaskable : 1
   Maskable : Internal 16/external 2
• Stand-by function
   STOP mode : Software clock stop mode
   HALT mode : Software CPU stop mode
  HOLD mode : Hardware CPU stop mode
• Package

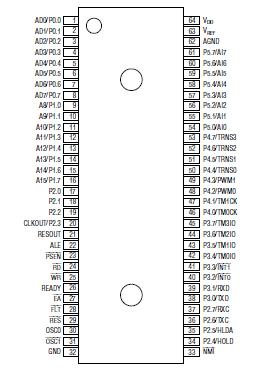

64-pin plastic shrink DIP (SDIP64-P-750-1.78) : (MSM66201-×××SS) (MSM66P201-×××SS)
                                                                           (MSM66207-×××SS) (MSM66P207-×××SS)
64-pin plastic QFP (QFP64-P-1414-0.80-BK) : (MSM66201-×××GSBK)(MSM66207×××GSBK)
68-pin plastic QFJ (PLCC) (QFJ68-P-S950-1.27) : (MSM66201-×××JS) (MSM66P201-×××JS)
                                                                            (MSM66207-×××JS) (MSM66P207-×××JS)
64-pin ceramic piggyback (ADIP64-C-750-1.78) : (MSM66G207VS)
                                                                             (××× indicates the code number.)
* The piggyback type is used only for engineering samples.

The MSM66P207 is a high performance microcontroller that employs OKI original nX-8/200 CPU core. This chip includes a 16-bit CPU, ROM, RAM, I/O ports, multifunction 16-bit timers, 10-bit A/D converter, serial I/O port, and pulse width modulator (PWM). The MSM66P207 is the OTP (One-Time Programmable) version of the MSM66201/66207.
