MSM6660-03

Features: • Power supply voltage : 4 to 6 V (for both logic and LCD driver)• Operating temperature : 40°C to +85°C• Applicable LCD duty : 1/2 (1/2 bias), 1/3 (1/3 bias)• Common output : 2 (1/2 duty), 3 (1/3 duty)• Segment output : 62• Serial transfer clock rate ...

product image

MSM6660-03 Picture
See larger image
SeekIC No. : 004429032 Detail

MSM6660-03: Features: • Power supply voltage : 4 to 6 V (for both logic and LCD driver)• Operating temperature : 40°C to +85°C• Applicable LCD duty : 1/2 (1/2 bias), 1/3 (1/3 bias)• Comm...

MSM6660-03 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM6660-03
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power supply voltage : 4 to 6 V (for both logic and LCD driver)
• Operating temperature : 40°C to +85°C
• Applicable LCD duty : 1/2 (1/2 bias), 1/3 (1/3 bias)
• Common output : 2 (1/2 duty), 3 (1/3 duty)
• Segment output : 62
• Serial transfer clock rate : 2 MHz Maximum
• On-board display synchronization circuit which enables display in a multi-chip configuration.
• CE, DATA, and CK are provided for microcomputer interface.
• Handling of display data segments in three blocks enables efficient data transfer.
• Equipped with display-blanking input and display segment test input functions.
• A built-in voltage dividing resistor for bias voltage generation.
   - 01: No internal resistance
   - 02: 1 kW internal resistance
   - 03: 30 kW internal resistance
• A built-in RC oscillation circuit which uses an external RC.
• Package options:
  80-pin plastic QFP (QFP80-P-1420-0.80-K) (Product name: MSM6660-01GS-K)
                                                                     (Product name: MSM6660-02GS-K)
                                                                      (Product name: MSM6660-03GS-K)
  80-pin plastic QFP (QFP80-P-1420-0.80-BK) (Product name: MSM6660-01GS-BK)
                                                                       (Product name: MSM6660-02GS-BK)
                                                                       (Product name: MSM6660-03GS-BK)


Pinout

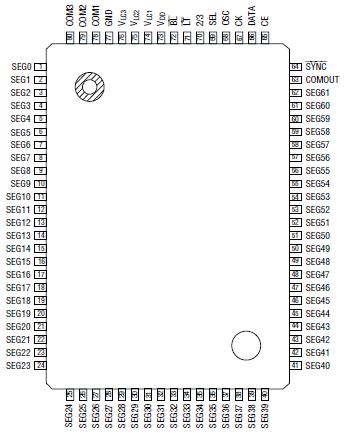

Connection Diagram


Specifications

Rating
Symbol
Condition
Rating
Unit
Supply Voltage
VDD
Ta = 25°C
0.3 to +7.0
V
Input Voltage
VIN
Ta = 25°C
-0.3 to VDD+0.3
V
Power Dissipation
PD
Ta = 85°C
300
mW
Storage Temperature
TSTG
-
55 to +150
°C



Description

The MSM6660-03 is a dynamic display LCD driver, equipped with a function that can switch between 1/2 and 1/3 duty. The MSM6660 can directly drive LCDs with up to 124 or 186 segments, depending on whether 1/2 or 1/3 duty is selected.

The MSM6660-03's on-board display synchronization circuit allows display in a multi-chip configuration.
