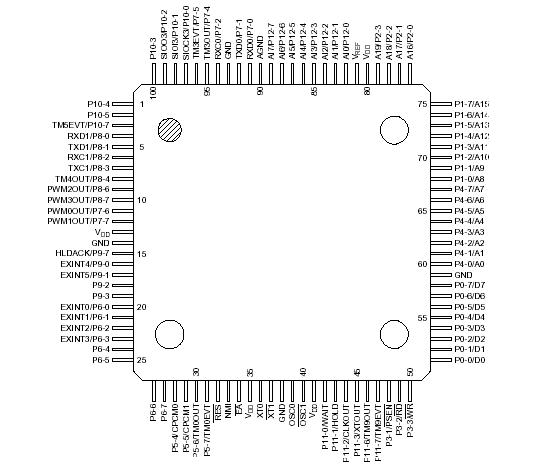

MSM66573

1. High-performance CPU
The family includes the high-performance CPU, powerful bit manipulation instruction set, full symmetricaladdressing mode, and ROM WINDOW function, and also provides the best optimized C compiler support.
2. A variety of power saving modes
Attaching a 32.768-kHz crystal produces a real-time clock signal from the internal clock timer. Use of a singleclock in place of dual clocks is possible. Switching the CPU clock to this clock signal, 1/2 × main clock, or 1/4 ×main clock, then produces operation in a low power consumption mode. The clock gear function allows a 1/2 × or1/4 × main clock to be selected for the CPU operating clock.
The family provides a wide range of standby control functions. In addition to the usual STOP mode that stops theoscillator, there are the quick restart STOP mode that shuts down the CPU and peripherals but leaves the oscillatorrunning, and the HALT mode that shuts down the CPU but leaves the peripherals running.
3. MSM66Q573L and MSM66Q573 with flash memory programmable with single power supply
In addition to the regular mask ROM version, the family includes these versions with 64KB of flash memory thatcan be programmed using a single power supply. For the MSM66Q573L, an internal booster circuit derives thenecessary program voltage from the device's low (2.4 V min) power supply, and the program voltage for theMSM66Q573 is provided with a single 5 V power supply.
4. Multifunction, high-precision analog-to-digital converter
The family includes a high-precision 10-bit analog-to-digital converter with eight channels and is ideal for suchanalog control functions as processing audio signals, processing sensor inputs, detecting key switch states, andcontrolling battery use in portable equipment. Each channel has its own result register readily accessible from thesoftware. In addition to single-channel conversions, there is also a scan function offering automatic conversionfrom the user's choice of starting channel through to the last channel.
5. Multifunction PWM
The family supports both 8- and 16-bit PWM operation. Choosing between the time-base counter output oroverflow from an 8-bit auto-reload timer as the PWM counter clock source provides a wide number of possibilitiesover a broad frequency range. The 16-bit PWM configuration supports a high-speed synchronization mode thatgenerates a high-precision output signal with less ripple suitable for digital-to-analog control applications.
6. Programmable pull-up resistors
Building the pull-up resistors into the chip contributes to overall design compactness. Making themprogrammable on a per-bit basis allows complete flexibility in circuit board layout and system design. Theseprogrammable pull-upresistors are available for all I/O pins not already assigned specific functions (such as theoscillator connection pins).
7. High-speed bus interface
The interface to external devices uses separate data and address buses. This arrangement permits rapid bus access
for controlling the system from the microcontroller.
8. Wide support for external interrupts
There are a total of seven interrupt channels for use in communicating with external devices: six for maskable interrupts and one for non-maskable interrupts.

The MSM66573 family of highly functional CMOS 16-bit single chip microcontrollers utilize the nX-8/500S,Oki's proprietary CPU core.
A wide variety of internal multi-functioned timers of MSM66573 provide timer functions such as compare out, capture, eventcounter, auto reload, and PWM, and can be used for periodic and timed measurements. In addition to the mainclock and clock gear functions, there is a sub clock (32.768 kHz) that is suitable for low power applications. Athree channel serial interface and a high-speed bus interface that has separate address and data buses and does notrequire external address latches are provided as interfaces to external devices.
With a 16-bit CPU core that enables high-speed 16-bit arithmetic computations and a variety of bit processing functions, this general-purpose microcontroller MSM66573 is optimally suited for Digital Audio devices such as a Mini-Discand an MP3 player.
The flash ROM version (MSM66Q573L) programmable with a single 2.4 V (minimum) power supply and flashROM version (MSM66Q573) programmable with a single 5 V power supply are also included in the family. Theseversions of MSM66573 are easily adaptable to sudden specification changes and to new product versions.
