Features:

Family device
MSM66572
MSM66573
Operating temperature
30°C to +70°C
Power supply voltage and
maximum clock frequency
VDD = 4.5 V to 5.5 V/f = 30 MHz
VDD = 2.4 V to 3.6 V/f = 14 MHz
Minimum instruction execution time
67 ns @30 MHz ( 4.5 to 5.5 V )
143 ns @14 MHz ( 2.4 to 3.6 V )
61 ms @32.768 kHz (2.4 to 3.6/4.5 to 5.5 V)
Internal ROM
(Maximum external ROM)
48K Byte
64K Byte
( 1M Byte )
Internal RAM
(Maximum external RAM)
4K Byte
( 1M Byte )
I/O ports
75 I/O pins
(with programmable pull-up resistors)
Eight pins are for inputs only.
Timers
One 16-bit free-running counter
Two compare output/capture input channels
One 16-bit timer (auto reload/timer output)
One 8-bit auto reload timer
Three 8-bit auto reload timers
(These double as serial interface baud rate generators.)
One watchdog timer
(This doubles as an 8-bit auto reload timer.)
One clock timer channel
Four 8-bit PWM channels
(These are configurable as two 16-bit PWM channels.)
Serial ports
One UART channel
One synchronous channel
One channel switchable between UART and synchronous operation
Analog-to-digital converter
Eight 10-bit channels
External interrupts
One non-maskable; six maskable
Interrupt priorities
Three levels
Miscellaneous
Separate address and data busses
Bus release function
Dual clock operation
Flash ROM/One-time PROM versions
MSM66Q573/MSM66P573



Application

High-speed CD-ROM drives, PC peripherals, audiovisual equipment control sysems, office electronics control systems


Pinout

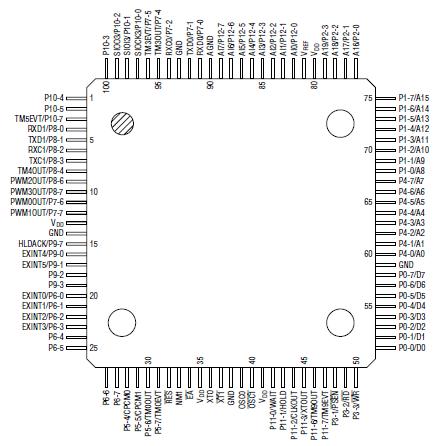

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Digital Power Supply Voltage
VDD
GND = AGND = 0 V
Ta = 25°C
0.3 to +7.0
V
Input Voltage
VI
0.3 to VDD+0.3
Output Voltage
VO
0.3 to VDD+0.3
Analog Reference Voltage
VREF
0.3 to VDD+0.3
Analog Input Voltage
VAI
0.3 to VREF
Power Dissipation
PD
Ta=70°C
1 Per package
650
mW
1 Per output
50
Storage Temperature
TSTG
-
55 to +150
°C



Description

The MSM66572 consists of high-performance, 16-bit CMOS single-chip microcontrollers based on Oki's own architecture.

Internal peripherals of MSM66572 include a selection of multifunction timers configurable for compare output,input capture, event counting, auto reloading, and PWM output for such uses as measuring frequencies and time intervals. In addition to the main clock, the MSM66572 supports a low-speed (32.768 kHz) clock for use in applications requiring energy conservation modes. Interfaces to external devices include a high-speed bus interface using separate address and data buses to eliminate the need for an external address latch and a three-channel serial interface.

The 16-bit core of MSM66572 supports high-speed 16-bit arithmetic and a wide variety of bit manipulations,making the microcontrollers ideal for such system control applications as high-speed CD-ROM drives and other PC peripherals.

The MSM66572 includes the flash ROM version MSM66Q573, rewritable with a single power supply (VDD = 2.7 to 3.3/4.5 to 5.5 V) and thus rapidly adaptable for changing specifications and applying field upgrades.
