MSM66101

Features: • 64K address space for program memory : Internal ROM : 12K bytes• 64K address space for data memory : Internal RAM : 384 bytes• High-speed execution Minimum cycle for instruction : 400ns @ 10MHz• Powerful instruction set : Instruction set superior in orthogonal m...

product image

MSM66101 Picture
See larger image
SeekIC No. : 004429000 Detail

MSM66101: Features: • 64K address space for program memory : Internal ROM : 12K bytes• 64K address space for data memory : Internal RAM : 384 bytes• High-speed execution Minimum cycle for in...

MSM66101 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM66101
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 64K address space for program memory : Internal ROM : 12K bytes
• 64K address space for data memory : Internal RAM : 384 bytes
• High-speed execution
   Minimum cycle for instruction : 400ns @ 10MHz
• Powerful instruction set : Instruction set superior in orthogonal matrix
   8/16-bit data transfer instructions
   8/16-bit arithmetic instructions
   Multiplication and division operation instructions
                                  Bit manipulation instructions
                                               Bit logic instrucitons
                           ROM table reference instructions
• Abundant addressing modes : Register addressing
   Page addressing
   Pointing register indirect addressing
   Stack addressing
    Immediate value addressing
• I/O port
   Input-output port : 5 ports × 8 bits
   (Each bit can be assigned to input or output)
    Input port : 1 port × 8 bits
• Built-in multifunctional 16-bit timer : 2
   Following 4 modes can be set for each timer :Auto-reload timer mode
                                                                                  Clock output mode
                                                                            Capture register mode
                                                                            Real time output mode
• Serial port : 1 channel (UART mode with baud rate generator)
• 12-bit pulse width modulator : 2
• Watchdog timer
• Transition detector : 4
• 10-bit A/D converter : 8 channels
• Interrupts
   Nonmaskable : 1
• Package options:
   64-pin plastic shrink DIP (SDIP64-P-750-1.78) : (Product name: MSM66101-×××SS)
   64-pin plastic QFP (QFP64-P-1414-0.80-BK) : (Product name: MSM66101-×××GS-BK)
   68-pin plastic QFJ (PLCC) (QFJ68-P-S950-1.27) : (Product name: MSM66101-×××JS)
   64-pin ceramic piggyback (ADIP64-C-750-1.78) : (Product name: MSM66G101VS)
* The piggyback type is used only for engineering samples.
       ××× indicates the code number.
   Maskable : Internal 10/external 2
• Stand-by function
    STOP mode : Software clock stop mode
    HALT mode : Software CPU stop mode
    HOLD mode : Hardware CPU stop mode


Pinout

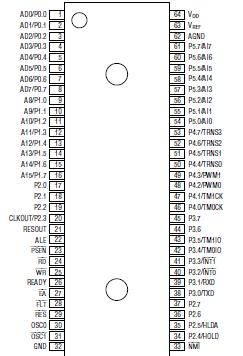

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Supply Voltage
VDD

GND = AGND = 0V
0.3 to +7.0
V
Input Voltage
VI
0.3 to VDD+0.3
Output Voltage
VO
0.3 to VDD+0.3
Analog Ref. Voltage
VREF
0.3 to VDD+0.3
Analog Input Voltage
VAI
0.3 to VREF
Power Dissipation
PD
Ta=85°C
per package
64-pin shrink DIP
930
mW
64-pin QFP
565
68-pin QFJ
1120
Ta = 85°C per output
50
Storage Temperature
TSTG
-
55 to +150
°C



Description

The MSM66101 is a high performance microcontroller that employs OKI original nX-8/100 CPU core. This chip includes a 16-bit CPU, ROM, RAM, I/O ports, multifunction 16-bit timers, 10-bit A/D converter, serial I/O port, and pulse width modulator (PWM).
