Product Details

Description

Features:

• 4-bit ADPCM method
• Built-in 12-bit DA converter
• Built-in low-pass filter (LPF) (40dB/oct)
• Sampling frequencies: 4k/8k/16k/32kHz
• Master clock frequency (ceramic oscillator) : 640kHz
• Voice data synthesis : Supported by voice analysis editing tools AR76-202 and AR203
• Package options :
18-pin plastic DIP (DIP18-P-300-2.54) (Product name : MSM6585RS)
24-pin plastic SOP (SOP24-P-430-1.27-K) (Product name : MSM6585 GS-K)
30-pin plastic SSOP (SSOP30-P-56-0.65-K) (Product name : MSM6585 GS-AK)

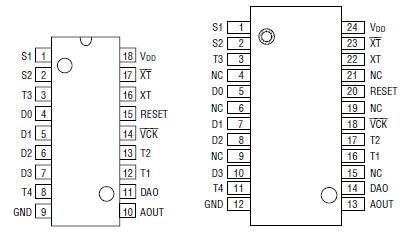

Pinout

Connection Diagram

Specifications

Rating	Symbol	Condition	Rating	Unit
Power Supply Voltage	V_DD	Ta = 25°C	0.3 to +7.0	V
Input Voltage	V_IN	Ta = 25°C	0.3 to V_DD+0.3	V
Storage Temperature	T_STG	-	55 to +150	°C

Description

The MSM6585 is an version-up product of the MSM5205 voice synthesis IC. Mainly improved points are improvement for the precision of an internal DA converter, a built-in low-pass filter, and expansion on the sampling frequency. The MSM6585 does not include a control circuit to drive an external memory similar to the MSM5205. Therefore, the MSM6585 can be connected with not only semiconductor memories, but other memory media (CD-ROM, etc.) by the control of CPU.
