MSM65516

Features: • Operating range Operating frequency : 0 to 10 MHz (VDD=4.5 to 5.5 V) 0 to 5 MHz (VDD=2.7 to 5.5 V) Operating voltage : 2.7 to 5.5 V Operating temperature : 40 to +85°C (Operation at +125°C is assured by the other specification.)• Memory space : 64K bytes Internal program me...

product image

MSM65516 Picture
See larger image
SeekIC No. : 004428976 Detail

MSM65516: Features: • Operating range Operating frequency : 0 to 10 MHz (VDD=4.5 to 5.5 V) 0 to 5 MHz (VDD=2.7 to 5.5 V) Operating voltage : 2.7 to 5.5 V Operating temperature : 40 to +85°C (Operation a...

MSM65516 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM65516
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operating range
   Operating frequency : 0 to 10 MHz (VDD=4.5 to 5.5 V)
                                       0 to 5 MHz (VDD=2.7 to 5.5 V)
   Operating voltage : 2.7 to 5.5 V
   Operating temperature : 40 to +85°C (Operation at +125°C is assured by the other specification.)
• Memory space : 64K bytes
   Internal program memory : 8K bytes
   Internal data memory : 256 bytes
• Minimum instruction execution time : 400 ns @ 10 MHz
• Powerful instruction set : 83 basic instructions
                                           8/16-bit operation instructions
                                              Bit manipulation instructions
                                         Compound function instructions
• Abundant addressing modes
• Multiplication/division operation functions : 8 * 8 16
                                                                16/8 16 ... 8
• I/O ports
    Input-output port : 4 ports * 8 bits
• Timers : 8-bit auto-reload timer * 2
   16-bit auto-reload timer * 1
    Watchdog timer * 1
• Counters : Time base counter * 1
       16-bit free-running counter * 1
• Capture input : 1 channel
• Compare output : 2 channels
• Serial ports : Shift register * 1
   Serial port with baud rate generator
   (UART/synchronous) * 1
• External interrupts : 3
• Interrupt sources : 15
• Package
   40-pin plastic DIP (DIP40-P-600-2.54) : (MSM65512A-***RS,MSM65P512A-***RS)
   44-pin plastic QFP (QFP44-P-910-0.80-2K) : (MSM65512A-***GS-2K,MSM65P512A-xxxGS-2K)
   44-pin plastic QFJ (PLCC) (QFJ44-P-S650-1.27): (MSM65512A-***JS,MSM65P512A-***JS)
   *** indicates the code number.


Pinout

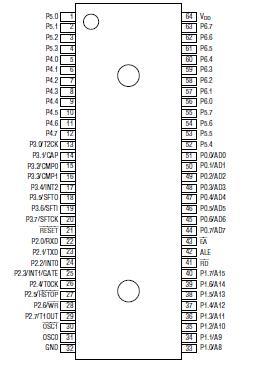

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Supply Voltage
VDD
Ta = 25°C
0.3 to +7.0
V
Input Voltage
VI
0.3 to VDD+0.3
V
Output Voltage
VO
0.3 to VDD+0.3
V
Power Dissipation
PD
 Ta = 25°C per package
400
mW
Ta = 25°C per output
50
Storage Temperature
TSTG
-
55 to +150
°C



Description

The MSM65516 is a high-performance 8-bit microcontroller that employs OKI original nX-8/50 CPU core. With a minimum instruction execution time of 400 ns (10MHz clock), the MSM65516 is capable of high-speed processing, and includes 32K bytes of program memory, 640 bytes of data memory, timers and serial ports. Also available are the MSM65P516, which replaces the onchip program memory with one-time PROM, and the MSM65X516, which uses external program memory.
