MSM6544

Features: • Power supply voltage (VDD) : 3 to 6V• LCD driving voltage : 3 to VDD• Operating temperature : 40 to +85°C• Applicable LCD panel : 1/2 duty, 84 segments (Max)• Data transmitting clock : 4 MHz (Max)• Package: 56-pin plastic QFP (QFP56-P-910-0.65-K) (Pr...

product image

MSM6544 Picture
See larger image
SeekIC No. : 004428968 Detail

MSM6544: Features: • Power supply voltage (VDD) : 3 to 6V• LCD driving voltage : 3 to VDD• Operating temperature : 40 to +85°C• Applicable LCD panel : 1/2 duty, 84 segments (Max)̶...

MSM6544 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM6544
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power supply voltage (VDD) : 3 to 6V
• LCD driving voltage : 3 to VDD
• Operating temperature : 40 to +85°C
• Applicable LCD panel : 1/2 duty, 84 segments (Max)
• Data transmitting clock : 4 MHz (Max)
• Package:
   56-pin plastic QFP (QFP56-P-910-0.65-K) (Product name : MSM6544GS-K)
   BLOCK DIAGRAM
   SEG1 SEG42


Pinout

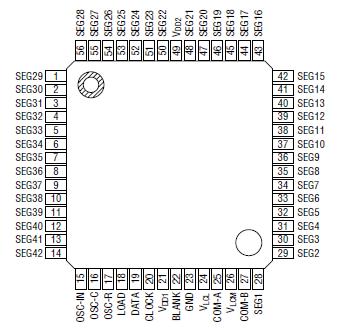

Connection Diagram


Specifications

Rating
Symbol
Condition
Rating
Unit
Supply Voltage
VDD
Ta = 25°C
0.3 to +6.5
V
Input Voltage
VI
GND0.3 to VDD +0.3
Storage Temperature
TSTG
-
55 to +150
°C



Description

The MSM6544 is a 42-segment duplex driver which can drive the LCD panel up to a maximum of 84 segments.

Since the package is a 56-pin small QFP, an LCD module can be compactly configured. An internal RC oscillator is provided for ease of use.
