MSM6442

Features: • ROM : 2048 words * 8 bits• RAM : 128 words * 4 bits• I/O port Input-output port : 4 ports * 4 bits 1 port * 2 bits Input port : 1 port * 1 bit• LCD driver : 46 segments (static) : 92 segments (1/2 duty)• Stack (RAM) : 16 levels• Four interrupt source...

product image

MSM6442 Picture
SeekIC No. : 004428961 Detail

MSM6442: Features: • ROM : 2048 words * 8 bits• RAM : 128 words * 4 bits• I/O port Input-output port : 4 ports * 4 bits 1 port * 2 bits Input port : 1 port * 1 bit• LCD driver : 46 se...

floor Price/Ceiling Price

Part Number:
MSM6442
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• ROM : 2048 words * 8 bits
• RAM : 128 words * 4 bits
• I/O port
   Input-output port : 4 ports * 4 bits
   1 port * 2 bits
   Input port : 1 port * 1 bit
• LCD driver : 46 segments (static)
                    : 92 segments (1/2 duty)
• Stack (RAM) : 16 levels
• Four interrupt sources (external, CLK, TBC, T/C)
• Internal counter : 12-bit time base counter
                                8-bit programmable timer/event counter
• Crystal and ceramic oscillation
• 76 instructions
• Minimum instruction execution time : 952 ns @ 4.2 MHz
• Operating range
   Power supply voltage : 4.5 to 5.5 V (@ 4.2 MHz)
                                         3.0 to 6.0 V (@ 1 MHz)
   Operating temperature : 40 to +85°C
• Supply current (Typ.) : 6 mA (@ 5 V, 4.2 MHz)
                                      1 mA (@ 3 V, 1 MHz)
• Power down function : Dependent on STOP instruction
• Package options:
    80-pin plastic QFP (QFP80-P-1420-0.80-K): (Product name : MSM6442-**GS-K)
    80-pin plastic QFP (QFP80-P-1420-0.80-BK) : (Product name : MSM6442-**GS-BK)
                                                                                     ** indicates a code number.



Pinout

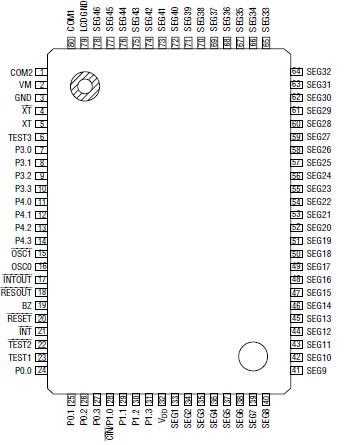

  Connection Diagram


Specifications

Rating
Symbol
Condition
Rating
Unit
Power Supply Voltage
VDD
Ta = 25°C
0.3 to +7
V
Input Voltage
VI
0.3 to VDD
Output Voltage
VO
0.3 to VDD
LCD Voltage
LCDGND
VDD 9 to VDD
V
Storage Temperature
TSTG
-
55 to +150
°C



Description

The MSM6442 is a 4-bit microcontroller with a built-in LCD controller/driver, developed to support control systems.

The MSM6442 is most suitable for various on-vehicle meters, watches, audio equipment, remote controllers, multifunctional telephones, and instrumentation units.
