MSM6422

Features: • ROM : 2048 words × 8 bits• RAM : 64 words × 4 bits• I/O port Input-output port : 4 ports × 4 bits (pseudo bidirectional configuration)1 port × 2 bits (pseudo bidirectional configuration) Input port : 1 port × 1 bit (combined use with an interrupt input)• Instruc...

product image

MSM6422 Picture
See larger image
SeekIC No. : 004428960 Detail

MSM6422: Features: • ROM : 2048 words × 8 bits• RAM : 64 words × 4 bits• I/O port Input-output port : 4 ports × 4 bits (pseudo bidirectional configuration)1 port × 2 bits (pseudo bidirectio...

MSM6422 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM6422
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• ROM : 2048 words × 8 bits
• RAM : 64 words × 4 bits
• I/O port
   Input-output port : 4 ports × 4 bits (pseudo bidirectional configuration)
                                  1 port × 2 bits (pseudo bidirectional configuration)
   Input port : 1 port × 1 bit (combined use with an interrupt input)
• Instructions : 63
• Two interrupt sources (1 internal, 1 external)
• Power down features
• Minimum instruction execution time : 952 ns @ 4.2 MHz clock
• Crystal and ceramic oscillation
• Single 5 V power supply
• Package options:
   24-pin plastic DIP (DIP24-P-600-2.54) : (Product name : MSM6422-××RS)
   24-pin plastic SOP (SOP24-P-430-1.27-K) : (Product name : MSM6422-××GS-K)
                                                                      ×× indicates a code number.


Pinout

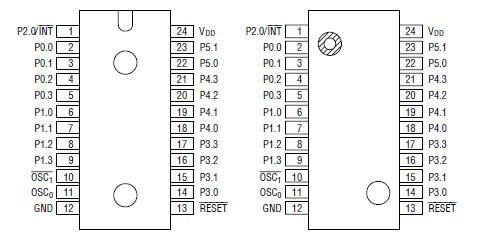

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Supply Voltage
VDD
Ta = 25°C
0.3 to +7
V
Input Voltage
VI
0.3 to +VDD
V
Output Voltage
VO
0.3 to +VDD
V
Output Current
PD
 Ta = 25°C per package
200max.
mW
Ta = 25°C per output
50max.
Storage Temperature
TSTG
-
55 to +150
°C



Description

The MSM6422 is a low-power, single-chip device implemented in complementary metal-oxide semiconductor technology.

The MSM6422 can be used in place of logic ICs configured around a main CPU, or for small-scale systems such as home electronic equipment.
