MSM64162D

• Operating range
   Operating frequencies : 32.768 kHz
   Operating voltage : 1.25 to 1.7 V (1.5 V spec.)
                                   2.0 to 3.5 V (3 V spec.)
                                   2.2 to 3.5 V (3 V spec., 1/2 duty)
   Operating temperature : 40 to +85°C
• Memory space
    Internal program memory : 2016 bytes
    Internal data memory : 128 nibbles
• Minimum instruction execution time : 91.6 s @ 32.768 kHz
• RC oscillation type A/D converter : 1 channel (2 sensors can be connected)
• LCD driver : 24 outputs; duty ratio switchable by software
   (1) At 1/4 duty and 1/3 bias : 80 segments (max)
   (2) At 1/3 duty and 1/3 bias : 63 segments (max)
   (3) At 1/2 duty and 1/2 bias : 44 segments (max)
• Buzzer driver : 1 output (4 output modes selectable)
• Capture circuit : 2 channels
•Watchdog timer
• Clock : 32.768 kHz crystal oscillator
   CPU clock : 32.768 kHz
   Time base clock : 32.768 kHz
• Power supply voltage : 1.5 V/3 V (selectable by mask option)
• I/O port
   Input-output port : 2 ports * 4 bits
   Input port : 1 port * 4 bits
   Output port : 1 port * 4 bits
   (8 out of the 24 LCD driver outputs can be used as output-only ports by mask option.)
• Interrupt sources
   External interrupt : 2 sources
   Internal interrupt : 7 sources
• Battery check circuit : 1 (incorporated into the input-only port)

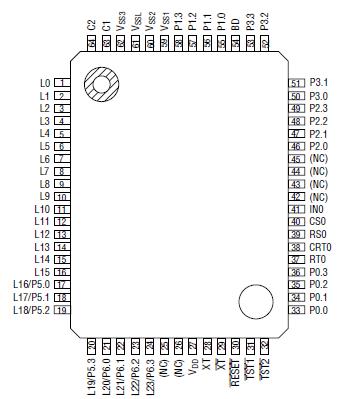

• Package options:
   64-pin plastic QFP (QFP64-P-1420-1.00-BK) : (Product name : MSM64162D-**GS-BK)
   80-pin plastic QFP (QFP80-P-1420-0.80-BK) : (Product name : MSM64162D-**GS-BK-F)
   Chip : (Product name : MSM64162D-**)
                     ** indicates a code number.

The MSM64162D is a low power 4-bit microcontroller that employs Oki's original CPU core nX-4/20.

The MSM64162D has 1-channel RC oscillation type A/D converter, LCD driver for up to 80 segments, and buzzer output port. It is best suited for applications such as low power thermometers and clinical thermometers.
