MSM6408

Features: • Mask ROM : 8096 words × 8 bits• RAM (including the stack area) : 256 words × 4 bits• I/O port Input-output port : 8 ports ×4 bits Input port : 1 port × 4 bits 4 bits are for input ports having a latch; the other 32 bits are for input/output ports that allow bit manipu...

product image

MSM6408 Picture
See larger image
SeekIC No. : 004428945 Detail

MSM6408: Features: • Mask ROM : 8096 words × 8 bits• RAM (including the stack area) : 256 words × 4 bits• I/O port Input-output port : 8 ports ×4 bits Input port : 1 port × 4 bits 4 bits ar...

MSM6408 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM6408
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Mask ROM : 8096 words × 8 bits
• RAM (including the stack area) : 256 words × 4 bits
• I/O port
   Input-output port : 8 ports ×4 bits
   Input port : 1 port × 4 bits
   4 bits are for input ports having a latch; the other 32 bits are for input/output ports that allow bit manipulation
• Three built-in counters : 12-bit time-base counter
   12-bit programmable timer
   8-bit high-speed programmable timer/event counter
• Built-in 8-bit serial I/O register (with 3-bit counter)
• Five interrupts with five priority levels (4 internal, 1 external)
• 32 stack levels (in RAM)
• Power down features
• Minimum instruction execution time : 1.0 ms @ 4.0 MHz clock
• Instruction systems suitable for control
• Fully static operation
• Low power consumption
• Single 5 V power supply
• Package options:
  42-pin plastic DIP (DIP42-P-600-2.54) (Product name : MSM6408-×××RS)
  44-pin plastic QFP (QFP44-P-910-0.80-K) (Product name : MSM6408-×××GS-K)
  44-pin plastic QFP (QFP44-P-910-0.80-2K) (Product name : MSM6408-×××GS-2K)
                                                                                  ××× indicates a code number.


Pinout

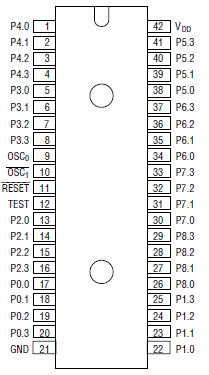

Connection Diagram


Specifications

Rating
Symbol
Condition
Rating
Unit
Power Supply Voltage
VDD
Ta = 25°C
0.3 to +7
V
Input Voltage
VI
0.3 to VDD
Output Voltage
VO
0.3 to VDD
Power Dissipation
PD
 Ta = 25°C per package
200
mW
Ta = 25°C per output
50
Storage Temperature
TSTG
-
55 to +150
°C



Description

The MSM6408 microcontroller is a low-power, single-chip device implemented in complementary metal-oxide semiconductor technology.

The MSM6408 is optimized for high-speed processing and complicated-control applications, in which conventional microcontrollers are difficult to use.
