Features:

• Rich instruction set
   439 instructions
  Transfer, rotate, increment/decrement, arithmetic operations, comparison, logic operations,mask operations, bit operations, ROM table reference, external memory transfer, stack operations, flag operations, branch, conditional branch, call/return, control.
• Rich selection of addressing modes
  Indirect addressing of four data memory types, with current bank register, extra bank register, HL register and XY register.Data memory bank internal direct addressing mode.
• Processing speed
  Two clocks per machine cycle, with most instructions executed in one machine cycle.
  Minimum instruction execution time : 61 s (@ 32.768 kHz system clock)
                                                            1 s (@ 2 MHz system clock)
• Clock generation circuit
   Low-speed clock : 32.768 kHz crystal oscillator
   High-speed clock : 2 MHz (Max.) RC or ceramic oscillator select
• Program memory space
   4K words
   Basic instruction length is 16 bits/1 word
• Data memory space
   384 nibbles
• External data memory space
   64 Kbytes (expandable by using an I/O port)
• Stack level
   Call stack level : 8 levels
   Register stack level : 16 levels
• I/O ports
   Input ports: Selectable as input with pull-up resistance/input with pull-down resistance/high-impedance input
  Output ports: Selectable as P-channel open drain output/N-channel open drain output/CMOS output/high-impedance output
  Input-output ports: Selectable as input with pull-up resistance/input with pull-down resistance/high-impedance input
Selectable as P-channel open drain output/N-channel open drain output/CMOS output/high-impedance output Can be interfaced with external peripherals that use a different power supply than this device uses.
   Number of ports:
   Input port : 2 ports * 4 bits
   Output port : 4 ports * 4 bits
   Input-output port : 3 ports * 4 bits
• Buzzer function
   Buzzer output : 0.946 to 5.461 kHz (adjustable in 15 steps)
   Buzzer output modes : Intermittent sound 1, 2; simple sound; continuous sound
• LCD driver
   Number of segments : 512 Max. (32 SEG * 16 COM)
   1/1 to 1/16 duty
   1/4 or 1/5 bias (regulator built-in)
   Selectable as all-on mode/all-off mode/power down mode/normal display mode Adjustable contrast
• Reset function
   Reset through RESET pin
   Power-on reset
   Reset by low-speed oscillation halt
• Battery check
   Low-voltage supply check
   Criterion voltage : Can be selected as 1.05 ±0.10 V, 1.30 ±0.15 V,
   2.20 ±0.20 V or 2.80 ±0.30 V
• Power supply backup
   Backup circuit (voltage multiplier) enables operation at 0.9 V minimum
• Timers and counter
   Watchdog timer * 1
    Overflows in 2 sec.
    100 Hz timer* 1
   Measurable in steps of 1/100 sec.
   15-bit time base counter *1
   1, 2, 4, 8, 16, 32, 64, and 128 Hz signals can be read
• Interrupt sources
   External interrupt : 2
   Internal interrupt : 6 (watchdog timer interrupt is a nonmaskable interrupt)
• Operating voltage
   When backup used : 0.9 to 2.7 V
          (Low-speed clock operating)
   1.2 to 2.7 V
          (Operating frequency: 300 to 500 kHz)
   1.5 to 2.7 V
          (Operating frequency: 200 kHz to 1 MHz)
  When backup not used : 1.8 to 5.5 V
          (Operating frequency: 300 to 500 kHz)
   2.2 to 5.5 V
          (Operating frequency: 300 kHz to 1 MHz)
   2.7 to 5.5 V
          (Operating frequency: 200 kHz to 2 MHz)
• Package:
   128-pin plastic QFP (QFP128-P-1420-0.50-K) : (Product name: MSM63182-xxxGS-K)
                                                                  Chip : (Product name: MSM63182-xxx)
                                                                  xxx indicates a code number.




Pinout

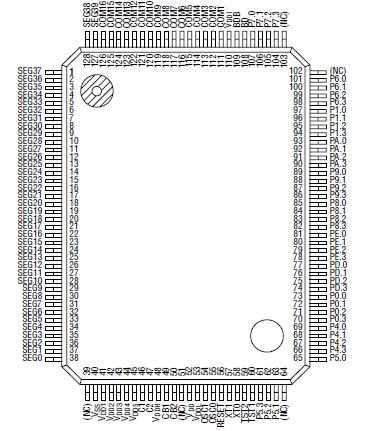

  Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Power Supply Voltage 1
VDD1
Ta = 25°C
0.3 to +1.6
V
Power Supply Voltage 2
VDD2
Ta = 25°C
0.3 to +2.9
Power Supply Voltage 3
VDD3
Ta = 25°C
0.3 to +4.2
Power Supply Voltage 4
VDD4
Ta = 25°C
0.3 to +5.5
Power Supply Voltage 5
VDD5
Ta = 25°C
0.3 to +6.8
Power Supply Voltage 6
VDD
Ta = 25°C
0.3 to +6.0
Power Supply Voltage 7
VDDI
Ta = 25°C
0.3 to +6.0
Power Supply Voltage 8
VDDH
Ta = 25°C
0.3 to +6.0
Power Supply Voltage 9
VDDL
Ta = 25°C
0.3 to +6.0
Input Voltage 1
VIN1
VDD Input, Ta = 25°C
0.3 to VDD + 0.3
Input Voltage 2
VIN2
VDDI Input, Ta = 25°C
0.3 to VDDI + 0.3
Output Voltage 1
VOUT1
VDD1 Input, Ta = 25°C
0.3 to VDD1 + 0.3
Output Voltage 2
VOUT2
VDD2 Input, Ta = 25°C
0.3 to VDD2 + 0.3
Output Voltage 3
VOUT3
VDD3 Input, Ta = 25°C
0.3 to VDD3 + 0.3
Output Voltage 4
VOUT4
VDD4 Input, Ta = 25°C
0.3 to VDD4 + 0.3
Output Voltage 5
VOUT5
VDD5 Input, Ta = 25°C
0.3 to VDD5 + 0.3
Output Voltage 6
VOUT6
VDD Input, Ta = 25°C
0.3 to VDD + 0.3
Output Voltage 7
VOUT7
VDDI Input, Ta = 25°C
0.3 to VDDI + 0.3
Output Voltage 8
VOUT8
VDDH Input, Ta = 25°C
0.3 to VDDH + 0.3
Storage Temperature
TSTG
-
55 to +150
°C



Description

The MSM63184B is a CMOS 4-bit microcontroller with built-in 640-dot matrix LCD drivers and operates at 0.9 V (min.). The MSM63184B is suitable for applications such as games, toys,watches, etc. which are provided with an LCD display.

The MSM63184B is an M6318x series mask ROM-version product of OLMS-63K family, which employs Oki's original CPU core nX-4/250.

The MSM63P180 is the one-time-programmable ROM version of MSM63188, having one-time PROM (OTP) as internal program memory.

The MSM63P180 is used to evaluate the software development.
