MSM60804

Features: • Functionally compatible with 82365SL• ISA bus interface• Compliance with PCMCIA 2.1/JEIDA 4.2• Mixed-voltage (3.3 V or 5.5 V) operation• Dual PCMCIA socket interface:208-pin QFP• 8-bit or 16-bit access supported• Complies with both MEMORY CARD ...

product image

MSM60804 Picture
See larger image
SeekIC No. : 004428921 Detail

MSM60804: Features: • Functionally compatible with 82365SL• ISA bus interface• Compliance with PCMCIA 2.1/JEIDA 4.2• Mixed-voltage (3.3 V or 5.5 V) operation• Dual PCMCIA socket ...

MSM60804 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM60804
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Functionally compatible with 82365SL
• ISA bus interface
• Compliance with PCMCIA 2.1/JEIDA 4.2
• Mixed-voltage (3.3 V or 5.5 V) operation
• Dual PCMCIA socket interface:208-pin QFP
• 8-bit or 16-bit access supported
• Complies with both MEMORY CARD and I/O CARD
• Range of window setting:
   64KB I/O access space (0-FFFFH)
   64MB memory access space (0-3FFFFFFH) (common, attribute)
• One of IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10,
   IRQ11, IRQ12, IRQ14, IRQ15, and IOCHCK can be allocated to each slot
• Power supply control to each slot is available (5 V card and 3 V card are supported)
• Card power down control
• 4 slots are available by cascade connection
• Package:
   208-pin plastic QFP (QFP208-P-2828-0.50-K4) (Product name:MSM60804GS-K4)


Pinout

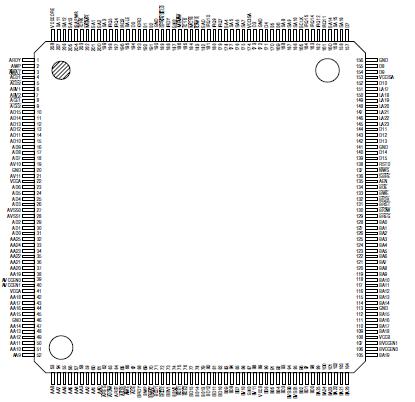

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Supply Voltage
VDD
Ta = 25°C
VSS = 0 V
0.5 to +6.5
V
Input Voltage
VI
0.5 to VDD + 0.5
V
Input Current
II
10 to +10
mA
Output Voltage
VO
0.5 to VDD + 0.5
V
Output Current
IO
   2 mA buffer
25 to +25
mA
16 mA buffer
50 to +50
Storage Temperature
TSTG
-
55 to +150
°C



Description

The MSM60804 PCMCIA Host Adapter is a PCMCIA host interface chip capable of controlling two PCMCIA sockets. The MSM60804 is compatible with indutry standard 82365SL functions.
