MSM5116400D

Features: · 4,194,304-word ¥ 4-bit configuration· Single 5V power supply, ±10% tolerance· Input : TTL compatible, low input capacitance· Output : TTL compatible, 3-state· Refresh : 4096 cycles/64 ms· Fast page mode, read modify write capability· CAS before RAS refresh, hidden refresh, RAS-only...

product image

MSM5116400D Picture
See larger image
SeekIC No. : 004428689 Detail

MSM5116400D: Features: · 4,194,304-word ¥ 4-bit configuration· Single 5V power supply, ±10% tolerance· Input : TTL compatible, low input capacitance· Output : TTL compatible, 3-state· Refresh : 4096 cycles/6...

MSM5116400D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM5116400D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 4,194,304-word ¥ 4-bit configuration
· Single 5V power supply, ±10% tolerance
· Input : TTL compatible, low input capacitance
· Output : TTL compatible, 3-state
· Refresh : 4096 cycles/64 ms
· Fast page mode, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· Multi-bit test mode capability
· Package options:
                  26/24-pin 300mil plastic SOJ (SOJ26/24-P-300-1.27) (Product : MSM5116400D-xxSJ)
                  26/24-pin 300mil plastic TSOP (TSOPII26/24-P-300-1.27-K) (Product : MSM5116400D-xxTS-K)
                                                                                                                           xx : indicates speed rank.


Pinout

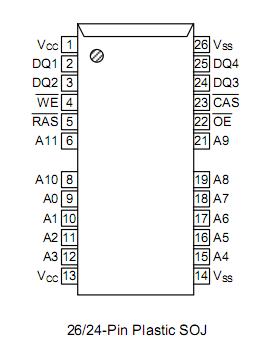

Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
Voltage on Any Pin Relative to VSS
VT
-0.5 to 7.0
V
Short Circuit Output Current
IOS
50
mA
Power Dissipation
PD*
1
W
Operating Temperature
Topr
0 to 70
Storage Temperature
Tstg
-55 to 150



Description

The MSM5116400D is a 4,194,304-word  * 4-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM5116400D achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM5116400D is available in a 26/24-pin plastic SOJ, 26/24-pin plastic TSOP.
