MSM27C802CZ

· 524,288 word x 16bit / 1,048,576 word x 8bit electrically switchable configuration
· Single +5V power  supply
· Access time           80ns
· Input / Output TTL compatible
· Three-state output

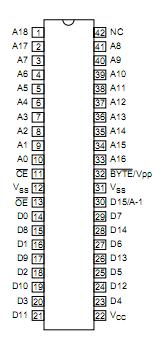

· Packages                       42-pin plastic DIP (DIP42-P-600-2.54)
                                          44-pin plastic SOP (SOP44-P-600-1.27-K)
                                          44-pin plastic TSOP (TSOP II 44-P-400-0.80-K)

The MSM27C802CZ is a 8Mbit electrically Programmable Read-Only Memory whose configuration can be electrically switched between 524,288 word x 16bit and 1,048,576 word x 8bit. The MSM27 C802CZ operates on a single +5V power supply and is TTL compatible. Since the MSM27C802CZ operates asynchronously , external clocks are not required , making this device easy-to-use. The MSM27C802CZ is suitable as large-capacity fixed memory for microcomputers and data terminals. It is manufactured using a CMOS double silicon gate technology and is offered in 42-pin DIP , 44-pin SOP or 44-pin TSOP packages.
