MSM27C402CZ

· 262,144 word x 16bit / 524,288 word x 8bit electrically switchable configuration
· Single +3.3V - 5V power  supply
· Access time           120ns (Vcc=3.3V)
                                  80ns (Vcc=5V)
· Input / Output TTL compatible
· Three-state output

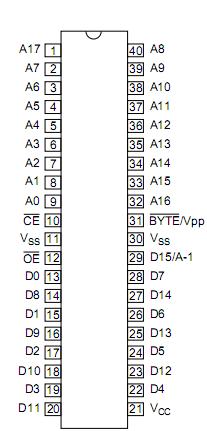

· Packages                       40-pin plastic DIP (DIP40-P-600-2.54)
                                          40-pin plastic SOP (SOP40-P-525-1.27-K)
                                          44-pin plastic TSOP (TSOP II 44-P-400-0.80-K)

The MSM27C402CZ is a 4Mbit electrically Programmable Read-Only Memory whose configuration can be electrically switched between 262,144 word x 16bit and 524,288 word x 8bit. The MSM27C40 2CZ operates on a single +3.3V - 5V power supply and is TTL compatible. Since the MSM27C402 CZ operates asynchronously , external clocks are not required , making this device easy-to-use. The MSM27C402CZ is suitable as large-capacity fixed memory for microcomputers and data terminals. It is manufactured using a CMOS double silicon gate technology and is offered in 40-pin DIP , 40-pin SOP or 44-pin TSOP packages.
