MSM27C1652CZ

 • 1,048,576 word x 16bit / 2,097,152 word x 8bit electrically switchable configuration
 • Single +5V power  supply
 • Access time 100ns
    Page mode access time 50ns
 • Input / Output TTL compatible
 • Three-state output

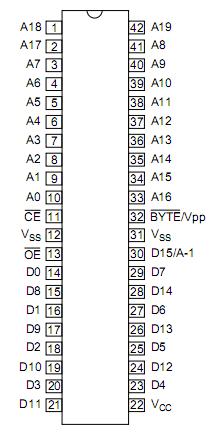

 • Packages                       42-pin plastic DIP (DIP42-P-600-2.54)
                                          44-pin plastic SOP (SOP44-P-600-1.27-K)
                                          48-pin plastic TSOP (TSOP II 48-P-550-0.80-K)

The MSM27C1652CZ is a 16Mbit electrically Programmable Read-Only Memory with page mode.

Its configuration can be  electrically switched between 1,048,576 word x 16bit and 2,097,152 word x 8bit. The MSM27C1652CZ operates on a single +5V power supply and is TTL compatible. The MSM27C1652CZ provides Page mode which can greatly reduce the read access time. Since the MSM27C1652CZ operates asynchronously , external clocks are not required , making this device easy-to-use. The MSM27C1652CZ is suitable as large-capacity fixed memory for microcomputers and data terminals. It is manufactured using a CMOS double silicon gate technology and is offered in 42-pin DIP , 44-pin SOP or 48-pin TSOP packages.
