Product Details

Description

Features:

`Operation range: 2.7V~5.5V
`Low power consumption
`Gain/Attenuation: 16dB to 79dB at 1dB/step
`Good PSRR
`I²C interface
`Pop noise free
`Housed in SSOP20, SOP20

Application

·Multimedia system
·Hi-Fi audio system
·Car audio
·Portable audio equipment

Pinout

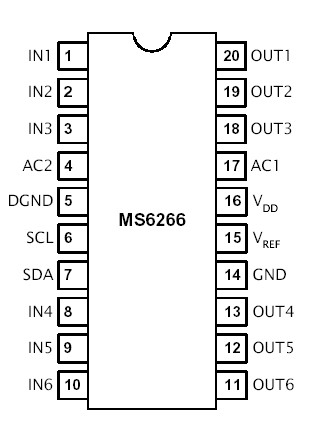

Connection Diagram

Specifications

Symbol	Parameter	Rating	Unit
V_DD	Supply Voltage	6	V
V_ESD	Electrostatic Handling	-3000 to 3000	V
T_STG	Storage Temperature Range	-65 to 150
T_A	Operating Ambient Temperature Range	-40 to 85
T_J	Maximum Junction Temperature	150
T_S	Soldering Temperature, 10 seconds	260
R_THJA	Thermal Resistance from Junction to Ambient in Free Air SOP8 SSOP20	210 210	/W

Description

The MS6266 is a 6-channel volume controller IC with gain and attenuation. It uses CMOS technology specially for the low voltage application with low noise, rail-to-rail output. The MS6266 provide an I2C control interface with gain / attenuation range of 16dB to -79dB, 1dB/step. The initial condition is set to be maximum attenuation 79dB and mute on mode when the power is on.
