Product Details

Description

Features:

`Operation range: 2.7V~5.5V
`Low power consumption
`Gain/Attenuation: 15dB to 79dB at 1dB/step
`Housed in 8 pin SOP package
`I²C interface

Application

·Multimedia system
·Hi-Fi audio system
·MP3, PDA
·Cross-reference PT2257, PT2259

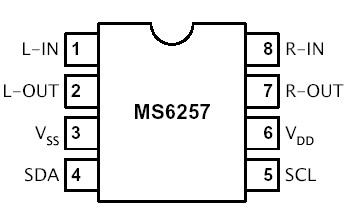

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Rating	Unit
V_DD	Positive Voltage	6	V
V_ESD	Electrostatic Handling	-4500 to 4500	V
T_STG	Storage Temperature Range	-65 to 150
T_A	Operating Ambient Temperature Range	-40 to 85
T_J	Maximum Junction Temperature	150
T_S	Soldering Temperature, 10 seconds	260
R_THJA	Thermal Resistance from Junction to Ambient in Free Air SOP8	210	/W

Description

The MS6257 is the stereo audio volume controller IC. It uses CMOS technology specially for the low voltage application with low noise, rail-to-rail output. The MS6257 provide an I2C control interface with gain / attenuation range of 15dB to 79dB, 1dB/step. The initial condition is set to be maximum attenuation 79dB and mute on mode when the power is up.
