Features:

`Color Index Mode supports up to 8192 simultaneous colors out of 16.7 million total colors
`24-bit RGB Mode allows full true color display
`High-speed operation capable of supporting resolutions up 1280 x 1024
`Available in 100-pin PQFP and MQUAD packages
`Unique "Write-Buffer" at MPU port permits dualport-like operation using an economical singleport memory core
`All TTL compatible inputs and outputs
`60, 70 and 80 MHz pipelined operation
`Standard MPU Interface


Pinout

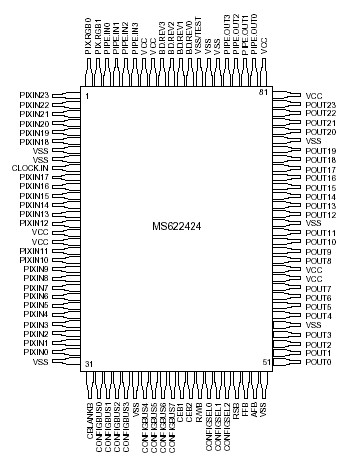

Connection Diagram


Specifications

Symbol Parameter Rating Units
VDD Supply Voltage 0.5* to +7.0 V
VT Terminal Voltage with
Respect to VSS		 0.5* to
VDD +0.5		 V
PD Power Dissipation
100% Duty Cycle		 TBD W
tOPR Operating Temperature 10 to +85
tSTG Storage Temperature 65 to +150

*Note: Operation above absolute maximum rating can affect evice reliability.


Description

The MS622424 is a high performance, full CMOS, 8K x 24, 192K-bit pipelined static memory. This device is specifically designed for use as a color look-up table in high resolution video display systems. When two of these devices are operated in parallel, the resulting system will be capable of supporting a display of 1280 x 1024 bit mapped color graphics with 13 bits per pixel in the Color Index Mode or 24 bits per pixel in the RGB Mode.

In the MS622424 Color Index Mode, three internal 8Kx8's provide 8192 simultaneous colors from a 16.7 million color palette. The palette can be partitioned into several smaller palettes thereby supporting multiple window display. In the RGB Mode, the 24-bit input can be gamma corrected on one of three gamma correction tables. The 24-bit gamma corrected value will then be presented at the output.
This device MS622424 is implemented in full CMOS for low power consumption, and is available in an 100-pin plastic or metal quad-flat-pack.
