MS52C182A

• Common address inputs and data inputs / outputs for SRAM and OTP
• 65,536-word x 16-bit / 131,072-word x 8-bit configuration SRAM and 524,288-word x 16-bit / 1,048,576-word x 8-bit configuration OTP
• Power supply voltage : 2.7 to 3.6V
• Fully static operation
• Operating temperature range : T_a= -20 to 70°C
• 3-state output
• Data retention available at power supply voltage 1.5V for SRAM
• Package options :

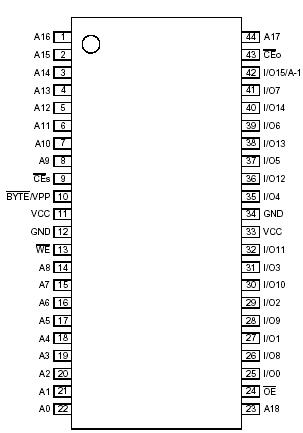

   - 44-pin plastic TSOP (Type II) (TSOP44-P-400-0.8) (Product : MS52C182ATA)
   - 48-pin plastic FBGA (FBGA48-P-0910-0.8) (Product : MS52C182ALA)
• Access time :
   - 100nS MAX (V_cc=2.7V)
   - 80nS MAX (V_cc=3.0V)
• Input / Output LVTTL compatible

The MS52C182A is a 65,536 -word by 16 -bit / 131,072-word by 8-bit electrically switchable 1Mb static RAM and 524,288-word by 16-bit / 1,048,576-word by 8-bit electrically switchable 8Mb One Time PROM featuring 2.7V to 3.6V power supply operation and direct LVTTL input / output compatibility. Since the circuitry is completely static,external clocks are unnecessary, making this device very easy to use.

The MS52C182A is packaged in 44-pin plastic TSOP and 48-pin FBGA (9mmx10mm) ,suited for use in handy terminal and other application which required small space.
