Product Details

Description

Features:

• 1.7 2.0 GHz
• 24 VOLTS
• INPUT/OUTPUT MATCHING
• P_OUT = 12 WATTS
• G_P= 7.5 dB MINIMUM
• COMMON BASE CONFIGURATION

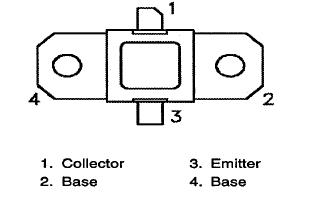

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
P_DISS	Power Dissipation	31.8	W
V_CC	Collector-Supply Voltage	24	V
I_C	Device Current	1.47	A
T_J	Junction Temperature	200	°C
T_STG	Storage Temperature	-65 to +200	°C

Description

The MS3303 is a designed specifically for telecommunications applications. Emitter site ballasting provides infinite VSWR capability and internal impedance matching provides superior broadband performance.
