Product Details

Description

Features:

• 1090 MHz
• 50 VOLTS
• 15:1 VSWR CAPABILITY
• INPUT / OUTPUT MATCHING
• POUT = 400 WATTS
• GP = 8.0 dB MINIMUM
• COMMON BASE CONFIGURATION

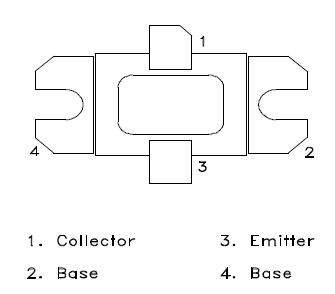

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
P_DISS	Power Dissipation	880	w
I_C	Device Current	24	A
V_CC	Collector Supply Voltage	55	V
T_J	Junction Temperature	200	°C
T_STG	Storage Temperature	- 65 to + 200	°C

Description

The MS2207 is a high power NPN bipolar transistor specifically designed for TCAS and Mode-S driver applications. This device is designed for operation under moderate pulse width and duty cycle pulse conditions and is capable of withstanding 15:1 output VSWR at rated conditions.
