MRFIC2406

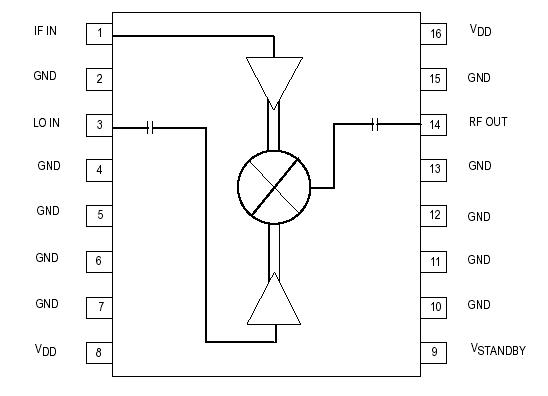

Pinout




Specifications

Parameter	Symbol	Limit	Units
Supply Voltage	VCC	7	V
Standby Voltage	VSTANDBY	7	V
IF Input Power	I F IN	+10	dBm
LO Input Power	L O IN	+10	dBm
Storage Temperature Range	Tstg	65 to+125	°C
Ambient Operating Temperature	TA	35 to +85	°C

Description

Designed primarily for use in Industrial, Scientific, Medical (ISM) frequency band applications, the MRFIC2406 is an active GaAs upmixer in a lowcost SOIC 16lead, surface mount package. The integrated circuit has internal active Baluns and requires minimal off-chip matching. In STANDBY mode, the device draws less than 0.6 mA for low battery drain.
• Usable Frequency Range = 2 to 3 GHz
• Single Voltage Supply = 3 to 5 Volts
• Low Current Drain = 15 mA Max Supply Current
• IF to RF Conversion Gain = 6 dB Typical
• STANDBY Mode for Low Current Consumption
• No External Baluns Required
• Simple Off-Chip Matching for Maximum Flexibility
• Order MRFIC2406R2 for Tape and Reel.R2 Suffix = 2,500 Units per 16 mm, 13 inch Reel.
• Device Marking = M2406
