MRFIC2404

Features:

• High Output Capability = +5.0 dBm Typical
• High Gain = 17 dB Typical
• Low Current Drain = 9.0 mA Typical
• Single Supply Voltage = 5.0 Volts
• Good Noise Figure = 4.3 dB Typical
• LowCost, Low Profile Plastic SOIC Package
• Order MRFIC2404R2 for Tape and Reel. R2 Suffix = 2,500 Units per 12 mm, 13 inch Reel.
• Device Marking = M2404

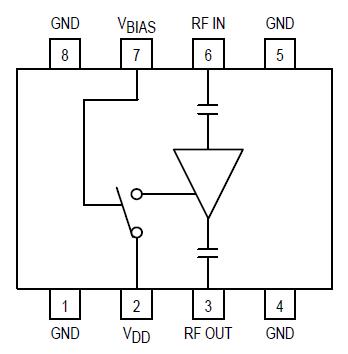

Pinout




Specifications

Parameter	Symbol	Value	Unit
Supply Voltage	VDD	12	Vdc
RF Input Power	RF IN	+10	dBm
Bias Control Voltage	Vbias	6.0	Vdc
Ambient Operating Temperature	TA	30 to +85	°C
Storage Temperature	Tstg	65 to +125	°C

Description

The MRFIC2404 is a singlestage class A GaAs amplifier in a lowcost 8 lead plastic package designed to drive the MRFIC2403 power amplifier for use in the 2.4 to 2.5 GHz IndustrialScientificMedical (ISM) band. The design is optimized for 5.0 Volt operation at 2.45 GHz but is usable from 2.0 to 3.0 GHz in applications such as telemetry and Multichannel Multipoint Distribution System (MMDS) wireless cable TV systems. Performance is suitable for frequency hopping or direct sequence spread spectrum as well as singlefrequency applications.
