Product Details

Description



Pinout

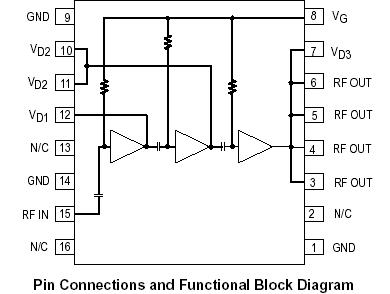

  Connection Diagram


Specifications

Parameter
Symbol
Limit
Units
DC Positive Supply Voltage
V D1, 2, 3
7.5
Vdc
DC Negative Supply Voltage
VSS
-5
dBm
RF Input Power
Pin
10
dBm
RF Output Power
Pout
36
mA
Storage Temperature Range
Tstg
65 to+150
°C
Operating Ambient Temperature
TC
30 to +85
°C



Description

Designed primarily for use in wireless Personal Communication Systems (PCS) applications such as Digital European Cordless Telephone (DECT), Japan's Personal Handy System (PHS) and the emerging North American systems. The MRFIC1813 is also applicable to 2.4 GHz ISM equipment. The device combines a balanced upmixer and a transmit exciter amplifier in a low-cost TSSOP16 package. Minimal off-chip matching is required while allowing for maximum flexibility and efficiency. The mixer is optimized for lowside injection and provides more than 12 dB of conversion gain with over 0 dBm output at 1 dB gain compression. Image filtering is implemented off-chip to allow maximum flexibility. A CMOS compatible ENABLE pin allows standby operation where the current drain is less than 250 A.
