MRFIC1814

Designed primarily for use in wireless Personal Communication Systems PCS) applications such as Digital European Cordless Telephone (DECT), Japan's Personal Handy System (PHS), and the emerging North American systems. The MRFIC1814 includes a low noise amplifier and downmixer in a ow-cost TSSOP16 package. The integrated circuit requires minimal off-chip matching while allowing for the maximum in flexibility and efficiency. The mixer is optimized for lowside injection and offers reasonable intercept point as well as high efficiency with 9 dB of conversion gain. Image filtering is implemented off-chip to allow maximum flexibility. CMOS compatible ENABLE pins allow standby operation where the current drain is less than 0.1 mA. Together with the rest of the MRFIC180X series, this GaAs IC family offers the complete transmit and receive functions, less LO and filters, needed for a typical 1.8 GHz cordless telephone.

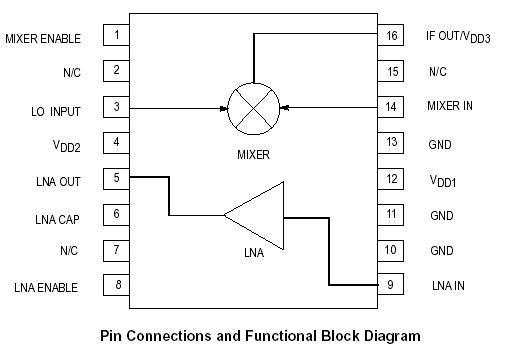

• Usable Frequency Range = 1.8 to 2.0 GHz
• 17 dB Typ Gain, 2.5 dB Typ Noise Figure LNA
• 8 dB Typ Gain, 10 dB Typ Noise Figure Mixer
• 5.5 dBm Typ Mixer Input Intercept Point
• Simple LO/IF Off-chip Matching for Maximum Flexibility
• Low Power Consumption = 39 mW (Typ)
• Single Bias Supply = 2.7 to 4.5 Volts
• Low LO Power Requirement = 5 dBm (Typ)
• Low Cost Surface Mount Plastic Package
• Order MRFIC1814R2 for Tape and Reel. R2 Suffix = 2,500 Units per 16 mm, 13 inch Reel.
• Device Marking = M1814 typical 1.8 GHz cordless telephone.
