MRFIC1806

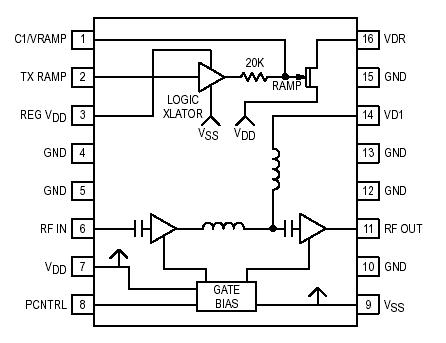

Pinout




Specifications

Parameter	Symbol	Limit	Units
Supply Voltage	VDD	6.0	Vdc
RF Input Power	PRF	-4.0	dBm
ENABLE Voltage	ENABLE	4.5	Vdc
VDD Current Sourcing (With Supply Connected to Pin 7)	IPIN2	3.0	mA
Storage Temperature Range	Tstg	65 to +150
Operating Ambient Temperature	TA	30 to +100
Storage Temperature Range	TX RAMP	65 to +150
Ambient Operating Temperature	TA	10 to +70
Thermal Resistance, Junction to Case	qJC	300

Description

Designed primarily for use in DECT, Japan's Personal Handy System (PHS), and other wireless Personal Communication Systems (PCS) applications at 1.8 GHz, but also applicable to Industrial, Scientific and Medical (ISM) applications at 2.5 GHz. The MRFIC1803 is a complete active upmixer, exciter amplifier, and LO buffer amplifier in a low-cost SOIC-16 package. The low power consumption design includes a single balanced active mixer, CMOS compatible receive and transmit enable inputs, a buffer/exciter amplifier, and a buffered LO output capable of driving the MRFIC1804 downconverter. IF, LO and RF ports are matched to 50 W and no off-chip baluns are required. With both TX and RX enable pins low, the device is in standby mode and draws less than 0.3 mA. Together with the rest of the MRFIC180X series, this GaAs IC family offers the complete transmit and receive functions, less LO and filters, needed for a typical 1.8 GHz cordless telephone.
• 10 dB IF to RF Conversion Gain
• Usable Frequency Range = 1.7 to 2.5 GHz
• Low Power Consumption = 80 mW (Typ)
• Single Bias Supply = 2.7 to 3.3 V
• No External Baluns Required
• IF, LO and RF Ports Matched to 50 W
• Low LO Power Requirement = 10 dBm (Typ)
• Low Cost Surface Mount Plastic Package
• Order MRFIC1803R2 for Tape and Reel.
R2 Suffix = 2,500 Units per 16 mm, 13 inch Reel.
• Device Marking = M1803
