MRF6S18060NR1

Transistors RF MOSFET Power 1880MHZ 60W

product image

MRF6S18060NR1 Picture
See larger image
SeekIC No. : 00220154 Detail

MRF6S18060NR1: Transistors RF MOSFET Power 1880MHZ 60W

MRF6S18060NR1 Data Sheet

floor Price/Ceiling Price

US $ 15.9~22.05 / Piece | Get Latest Price
Part Number:
MRF6S18060NR1
Mfg:
Freescale Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~271
  • 271~500
  • Unit Price
  • $22.05
  • $15.9
  • Processing time
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Configuration : Single Transistor Polarity : N-Channel
Frequency : 1.8 GHz to 2 GHz Gain : 15 dB
Output Power : 60 W Drain-Source Breakdown Voltage : 68 V
Gate-Source Breakdown Voltage : - 0.5 V, + 12 V Maximum Operating Temperature : + 150 C
Package / Case : TO-270-4 WB EP Packaging : Reel

Description

Continuous Drain Current :
Configuration : Single
Transistor Polarity : N-Channel
Maximum Operating Temperature : + 150 C
Packaging : Reel
Gain : 15 dB
Drain-Source Breakdown Voltage : 68 V
Gate-Source Breakdown Voltage : - 0.5 V, + 12 V
Package / Case : TO-270-4 WB EP
Output Power : 60 W
Frequency : 1.8 GHz to 2 GHz


Application

GSM Application
• Typical GSM Performance: VDD = 26 Vdc, IDQ = 600 mA, Pout = 60 Watts
   CW, Full Frequency Band (1805-1880 MHz or 1930-1990 MHz)
   Power Gain — 15 dB
   Drain Efficiency - 50%
   GSM EDGE Application
• Typical GSM EDGE Performance: VDD = 26 Volts, IDQ = 450 mA,
   Pout = 25 Watts Avg., Full Frequency Band (1805-1880 MHz or
   1930-1990 MHz)
   Power Gain — 15.5 dB
   Spectral Regrowth @ 400 kHz Offset = -62 dBc
   Spectral Regrowth @ 600 kHz Offset = -76 dBc EVM — 2% rms
• Capable of Handling 5:1 VSWR, @ 26 Vdc, 1990 MHz, 60 Watts CW Output Power
• Characterized with Series Equivalent Large-Signal Impedance Parameters
• Internally Matched for Ease of Use
• Qualified Up to a Maximum of 32 VDD Operation
• Integrated ESD Protection
• N-Suffix Indicates Lead-Free Terminations
• 200°C Capable Plastic Package
• In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.


Pinout

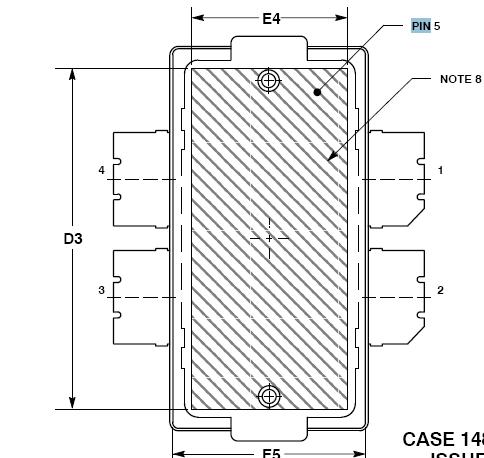

Connection Diagram


Specifications

Rating Symbol Value Unit
Drain-Source Voltage VDSS -0.5, +68 Vdc
Gate-Source Voltage VGS -0.5, +12 Vdc
Total Device Dissipation @ TC = 25°C
Derate above 25°C		 PD 216
1.2		 W
W/°C
Storage Temperature Range Tstg - 65 to +175 °C
Operating Junction Temperature TJ 200 °C



Parameters:

Technical/Catalog InformationMRF6S18060NR1
VendorFreescale Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeN-Channel
Voltage - Rated 26V
Current Rating2A
Package / CaseTO-270-4
PackagingTape & Reel (TR)
Drawing Number375; 1486-03; NR; 4
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MRF6S18060NR1
MRF6S18060NR1
