MRF21085LSR3

IC MOSFET RF N-CHAN NI-780S

product image

MRF21085LSR3 Picture
See larger image
SeekIC No. : 003434733 Detail

MRF21085LSR3: IC MOSFET RF N-CHAN NI-780S

MRF21085LSR3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MRF21085LSR3
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Continuous Collector Current : 5 mA
Manufacturer: Freescale Semiconductor Transistor Type: LDMOS
Frequency: 2.11GHz Gain: 13.6dB
Voltage - Test: 28V Current Rating: 10µA
Noise Figure: - Current - Test: 1A
Power - Output: 19W Voltage - Rated: 65V
Package / Case: NI-780S Supplier Device Package: NI-780S

Description

Series: -
Noise Figure: -
Packaging: Tape & Reel (TR)
Transistor Type: LDMOS
Voltage - Test: 28V
Current - Test: 1A
Voltage - Rated: 65V
Current Rating: 10µA
Manufacturer: Freescale Semiconductor
Package / Case: NI-780S
Supplier Device Package: NI-780S
Frequency: 2.11GHz
Power - Output: 19W
Gain: 13.6dB


Application

Typical 2-carrier W-CDMA Performance for VDD = 28 Volts,
   IDQ = 1000 mA, f1 = 2135 MHz, f2 = 2145 MHz, Channel Bandwidth =
   3.84 MHz, Adjacent Channels Measured over 3.84 MHz BW @ f1  -5 MHz
   and f2 +5 MHz, Distortion Products Measured over a 3.84 MHz BW @ f1 -10 MHz and f2 +10 MHz, Peak/Avg. = 8.3 dB @ 0.01% Probability on CCDF.
   Output Power ó 19 Watts Avg.
   Power Gain ó 13.6 dB
   Efficiency ó 23%
   IM3 ó -37.5 dBc
   ACPR ó -41 dBc
Internally Matched, Controlled Q, for Ease of Use
High Gain, High Efficiency and High Linearity
Integrated ESD Protection
Designed for Maximum Gain and Insertion Phase Flatness
Capable of Handling 5:1 VSWR, @ 28 Vdc, 2170 MHz, 90 Watts CW  Output Power
Excellent Thermal Stability
Characterized with Series Equivalent Large-Signal Impedance Parameters
Available with Low Gold Plating Thickness on Leads. L Suffix Indicates 40 Nominal.
In Tape and Reel. R3 Suffix = 250 Units per 56 mm, 13 inch Reel.


Pinout

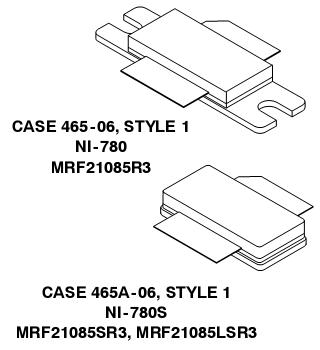

Connection Diagram


Specifications

Rating Symbol Value Unit
Drain-Source Voltage VDSS 65 Vdc
Gate-Source Voltage VGS -0.5, +15 Vdc
Total Device Dissipation @ TC = 25°C
Derate above 25°C		 PD 224
1.28		 Watts
W/°C
Storage Temperature Range Tstg -65 to +150 °C
Operating Junction Temperature TJ 200 °C
