MRF21060R3

ApplicationTypical W-CDMA Performance: 2140 MHz, 28 Volts 5 MHz Offset @ 4.096 MHz BW, 15 DTCH Output Power ó 6.0 Watts Power Gain ó 12.5 dB Drain Efficiency ó 15%Internally Matched, Controlled Q, for Ease of UseHigh Gain, High Efficiency and High LinearityIntegrated ESD ProtectionDesigned for Max...

product image

MRF21060R3 Picture
See larger image
SeekIC No. : 004426914 Detail

MRF21060R3: ApplicationTypical W-CDMA Performance: 2140 MHz, 28 Volts 5 MHz Offset @ 4.096 MHz BW, 15 DTCH Output Power ó 6.0 Watts Power Gain ó 12.5 dB Drain Efficiency ó 15%Internally Matched, Controlled Q, f...

MRF21060R3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MRF21060R3
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Application

Typical W-CDMA Performance: 2140 MHz, 28 Volts
   5 MHz Offset @ 4.096 MHz BW, 15 DTCH
   Output Power ó 6.0 Watts
   Power Gain ó 12.5 dB
   Drain Efficiency ó 15%
Internally Matched, Controlled Q, for Ease of Use
High Gain, High Efficiency and High Linearity
Integrated ESD Protection
Designed for Maximum Gain and Insertion Phase Flatness
Capable of Handling 10:1 VSWR, @ 28 Vdc, 2.11 GHz, 60 Watts CW  Output Power
Excellent Thermal Stability
Characterized with Series Equivalent Large-Signal Impedance Parameters
In Tape and Reel. R3 Suffix = 250 Units per 56 mm, 13 Inch Reel.


Pinout

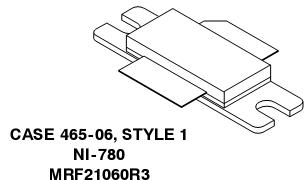

Connection Diagram


Specifications

Rating Symbol Value Unit
Drain-Source Voltage VDSS 65 Vdc
Gate-Source Voltage VGS -0.5, +15 Vdc
Total Device Dissipation @ TC = 25°C
Derate above 25°C		 PD 180
0.98		 Watts
W/°C
Storage Temperature Range Tstg -65 to +150 °C
Operating Junction Temperature TJ 200 °C
