MR856RL

Rectifiers 600V 3A Fast

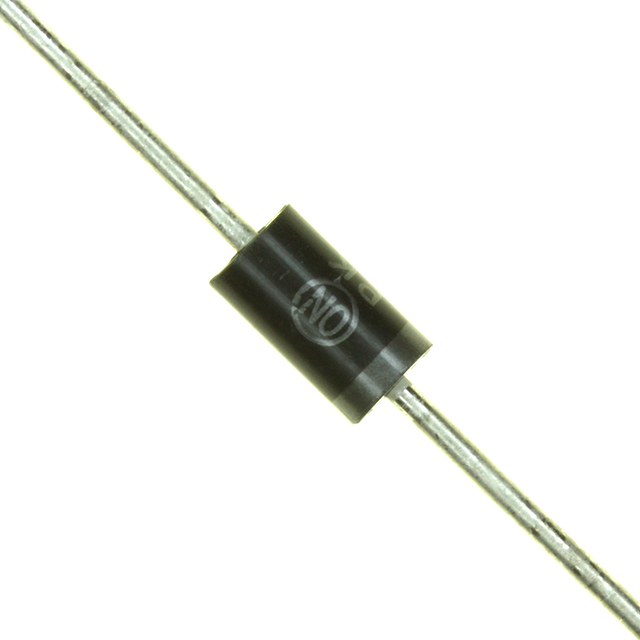

product image

MR856RL Picture
See larger image
SeekIC No. : 00182492 Detail

MR856RL: Rectifiers 600V 3A Fast

MR856RL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MR856RL
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Fast Recovery Rectifiers Configuration : Single
Reverse Voltage : 600 V Forward Voltage Drop : 1.25 V
Recovery Time : 300 ns Forward Continuous Current : 3 A
Max Surge Current : 100 A Reverse Current IR : 10 uA
Mounting Style : Through Hole Package / Case : Case 267-05
Packaging : Reel

Description

Reverse Voltage : 600 V
Product : Fast Recovery Rectifiers
Forward Voltage Drop : 1.25 V
Packaging : Reel
Configuration : Single
Forward Continuous Current : 3 A
Mounting Style : Through Hole
Max Surge Current : 100 A
Reverse Current IR : 10 uA
Recovery Time : 300 ns
Package / Case : Case 267-05


Parameters:

Technical/Catalog InformationMR856RL
VendorON Semiconductor (VA)
CategoryDiscrete Semiconductor Products
Diode Type Standard
Voltage - DC Reverse (Vr) (Max)600V
Current - Average Rectified (Io)3A
Voltage - Forward (Vf) (Max) @ If1.25V @ 3A
Reverse Recovery Time (trr)300ns
Current - Reverse Leakage @ Vr10A @ 600V
SpeedFast Recovery =< 500ns, > 200mA (Io)
Mounting TypeThrough Hole, Axial
Package / CaseDO-201AD, Axial
PackagingCut Tape (CT)
Capacitance @ Vr, F-
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names MR856RL
MR856RL
MR856RLOSCT ND
MR856RLOSCTND
MR856RLOSCT
