MR533203J

Features: · 2,097,152 word x 16bit configuration· Single +4.5V~5.5V power supply· Access time 100ns· VCC power supply current 65mA· VCC standby current 50mA· Input / Output TTL compatible· Three-state output· Packages - 42-pin plastic DIP (DIP42-P-600-2.54) MR533203J-XXRAPinoutSpecifications ...

product image

MR533203J Picture
See larger image
SeekIC No. : 004426669 Detail

MR533203J: Features: · 2,097,152 word x 16bit configuration· Single +4.5V~5.5V power supply· Access time 100ns· VCC power supply current 65mA· VCC standby current 50mA· Input / Output TTL compatible· Three-sta...

MR533203J Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MR533203J
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 2,097,152 word x 16bit configuration
· Single +4.5V~5.5V power supply
· Access time 100ns
· VCC power supply current  65mA
· VCC standby current  50mA
· Input / Output TTL compatible
· Three-state output
· Packages
   - 42-pin plastic DIP  (DIP42-P-600-2.54) MR533203J-XXRA


Pinout

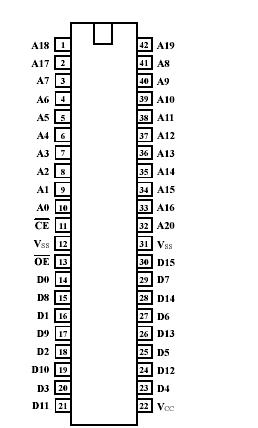

Connection Diagram


Specifications

Parameter Symbol Condition Value Unit
Operating temperature under bias Topr - 0 to 70 °C
Storage temperature Tstg - -55 to 125 °C
Input voltage VI relative to VSS -0.5 to VCC+ 0.5 V
Output voltage VO -0.5 to VCC+ 0.5 V
Power supply voltage VCC -0.5 to 7 V
Power dissipation per package PD - 1.0 W



Description

The  MR533203J  is  a  32Mbit  Read-Only  Memory  whose  configuration  can  is  2,097,152  word  x 16bit. The MR533203J operates asynchronously, external clocks are not required, making this device easy-to-use. The MR533203J is suitable as large-capacity fixed memory for microcomputers and data terminals. It is manufactured using a CMOS silicon gate technology and is offered in 42-pin DIP
