MPXM2102

Features:

• Temperature Compensated Over 0°C to +85°C
• Unique Silicon Shear Stress Strain Gauge
• Easy to Use Tape & Reel
• Ratiometric to Supply Voltage
• Gauge Ported & Non Ported Options



Application

• Pump/Motor Controllers
• Robotics
• Level Indicators
• Medical Diagnostics
• Pressure Switching
• Barometers
• Altimeters

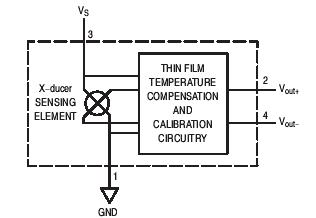

Pinout




Specifications

Rating	Symbol	Value	Unit
Overpressure(8) (P1 > P2)	Pmax	200	kPa
Storage Temperature	Tstg	40 to +125	°C
Operating Temperature	TA	40 to +125	°C

Description

The MPXM2102 device is a silicon piezoresistive pressure sensors providing a highly accurate and linear voltage output - directly proportional to the applied pressure. The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thinfilm resistor network integrated onchip. The MPXM2102 is laser trimmed for precise span and offset calibration and temperature compensation.
