Product Details

Description



Features:

• 1:6 PLL based low-voltage clock generator
• 3.3V power supply
• Generates clock signals up to 240 MHz
• Maximum output skew of 150 ps
• Differential LVPECL reference clock input
• Alternative LVCMOS PLL reference clock input
• Internal and external PLL feedback
• Supports zero-delay operation in external feedback mode
• PLL multiplies the reference clock by 4x, 3x, 2x, 1x, 4/3x, 3/2x, 2/3x, x/2, x/3 or x/4
• Synchronous output clock stop in logic low eliminates output runt pulses
• Power_down feature reduces output clock frequency
• Drives up to 12 clock lines
• 32 lead LQFP packaging
• Ambient temperature range 0 to +70
• Internal PowerUp Reset
• Pin and function compatible to the MPC931


Pinout

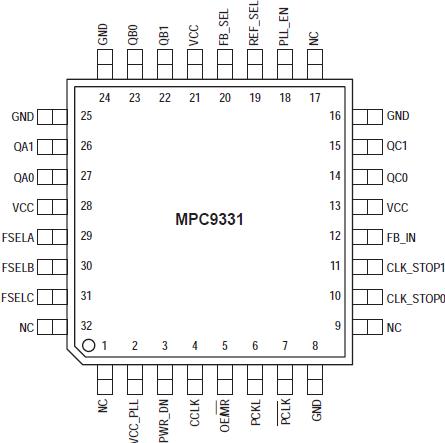

Connection Diagram


Specifications

Symbol Characteristics Min Max Unit Condition
VCC Supply Voltage -0.3 3.9 V
VIN DC Input Voltage -0.3 VCC+0.3 V
VOUT DC Output Voltage -0.3 VCC+0.3 V
IIN DC Input Current   ±20 mA
IOUT DC Output Current   ±50 mA
TS Storage Temperature -65 125

a Absolute maximum continuos ratings are those maximum values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation at absolute-maximum-rated conditions is not implied.
