Product Details

Description



Pinout

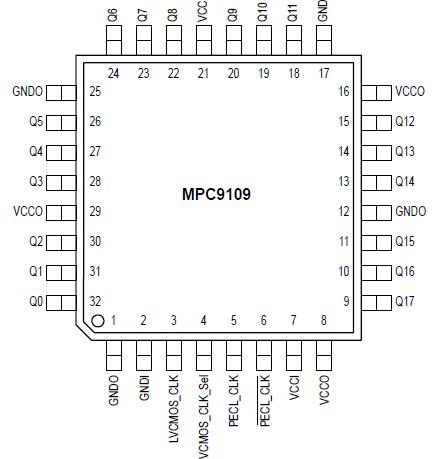

  Connection Diagram


Specifications

Symbol Parameter Min Max Unit
VCC Supply Voltage -0.3 3.6 V
VI Input Voltage -0.3 VCC + 0.3 V
IIN Input Current   ±20 mA
TStor Storage Temperature Range -40 125

* Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions is not implied.




Description

The MPC9109 is a 1:18 low voltage clock distribution chip with 2.5V or 3.3V LVCMOS output capabilities. The MPC9109 features the capability to select either a differential LVPECL or an LVCMOS compatible input. The 18 outputs are 2.5V or 3.3V LVCMOS compatible and feature the drive strength to drive 50W series or parallel terminated transmission lines.

With outputtooutput skews of 200ps, the MPC9109 is ideal as a clock distribution chip for the most demanding of synchronous systems. The 2.5V outputs also make the device ideal for supplying clocks for a high performance Pentium IIE microprocessor based design. For a higher performance version of the 9109 refer to the MPC940L data sheet.

• LVPECL or LVCMOS Clock Input
• 2.5V LVCMOS Outputs for Pentium II Microprocessor Support
• 200ps Maximum OutputtoOutput Skew @ 3.3V Output
• Maximum Output Frequency of 250MHz @ 3.3V Core
• 32Lead QFP Packaging
• Dual or Single Supply Device:
• Dual VCC Supply Voltage, 3.3V Core and 2.5V Output
• Single 3.3V VCC Supply Voltage for 3.3V Outputs
• Single 2.5V VCC Supply Voltage for 2.5V I/O
With a low output impedance (920), in both the HIGH and LOW logic states, the output buffers of the MPC9109 are ideal for driving series terminated transmission lines. With a 20W output impedance the 9109 has the capability of driving two series terminated lines from each output.

MPC9109 gives the device an effective fanout of 1:36. If a lower output impedance is desired please see the MPC942 data sheet. If better performance is desired please see the MPC940L data sheet.

The differential LVPECL inputs of the MPC9109 allow the device to interface directly with a LVPECL fanout buffer like the MC100EP111 to build very wide clock fanout trees or to couple to a high frequency clock source. The LVCMOS input provides a more standard interface for applications requiring only a single clock distribution chip at relatively low frequencies. In addition, the two clock sources can be used to provide for a test clock interface as well as the primary system clock. A logic HIGH on the LVCMOS_CLK_Sel pin will select the LVCMOS level clock input. All inputs of the MPC9109 have internal pullup/pulldown resistor so they can be left open if unused.

The MPC9109 is a single or dual supply device. The device power supply offers a high degree of flexibility. The device can operate with a 3.3V core and 3.3V output, a 3.3V core and 2.5V outputs as well as a 2.5V core and 2.5V outputs. The 32lead QFP package was chosen to optimize performance, board space and cost of the device. The 32lead TQFP has a 7x7mm body size with a conservative 0.8mm pin spacing.
