MPC17510

Notes
1. When supplied externally, connect via 3.0 k resistor.
2. TA = 25°C, 10 ms pulse at 200 ms interval.
3. ESD1 testing is performed in accordance with the Human Body Model (CZAP = 100 pF, RZAP = 1500 ).
4. ESD2 testing is performed in accordance with the Machine Model (CZAP = 200 pF, RZAP = 0 ).
5. TA = 25°C, RJA = 120°C/W, 37 mm x 50 mm Cu area (1.6 mm FR-4 PCB).
6. Soldering temperature limit is for 10 seconds maximum duration. Not designed for immersion soldering. Exceeding these limits may cause malfunction or permanent damage to the device.

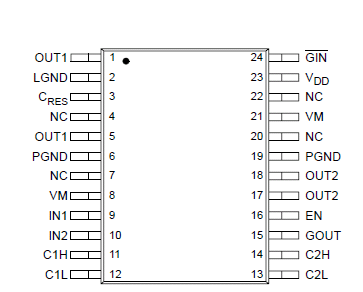

The 17510 is a monolithic H-Bridge designed to be used in portableelectronic applications such as digital and SLR cameras to control small DC motors.
The 17510 can operate efficiently with supply voltages as low as 2.0 V to as high as 15 V. Its low RDS(ON) H-Bridge output MOSFETs (0.45 typical) can provide continuous motor drive currents of 1.2 A and handle peak currents up to 3.8 A. 17510 is easily interfaced to low-cost MCUs via parallel 5.0 V compatible logic. The device can be pulse width modulated (PWM-ed) at up to 200 kHz.
17510 contains an integrated charge pump and level shifter (for gate drive voltages), integrated shoot-through current protection (cross-conduction suppression logic and timing), and undervoltage detection and shutdown circuitry.
The 17510 has four operating modes: Forward, Reverse, Brake, and Tri-Stated (High Impedance).
