MP7612

V_CC to AGND  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+16.5 V
V_EE to AGND  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.5 V
DV_DD to DGND  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +6.5 V
V_REF to DGND  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+7.0 V
AGND to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  +1 V
(Functionality guaranteed for -0.5 V only)
Digital Input & Output Voltage to DGND 0.5 to DV_DD +0.5V
Analog Inputs & Outputs  . . . . . . . . . . . . . . . . .Indefinite Shorts to
V_CC, V_EE, DV_DD, AGND, DGND (provided that power
dissipation of the package spec is not exceeded)
Operating Temperature Range
Extended Industrial  . . . . . . . . . . . . . . . . . . . . . 40°C to +85°C
Maximum Junction Temperature . . . . . . . . . . . . .65°C to 150°C
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Lead Temperature (Soldering, 10 sec)  . . . . . . . . . . . . . . .+300°C
Package Power Dissipation Rating @ 75°C
SOIC, PLCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1150mW
Derates above 75°C . . . . . . . . . . . . . . . . . . . . . . . . . . .15mW/°C
NOTES:
1 Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation at or above this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
2 Any input pin which can see a value outside the absolute maximum ratings should be protected by Schottky diode clamps (HP5082-2835) from input pin to the supplies. All inputs have protection diodes which will protect the device from short transients outside the supplies of less than 100mA for less than 100ms.

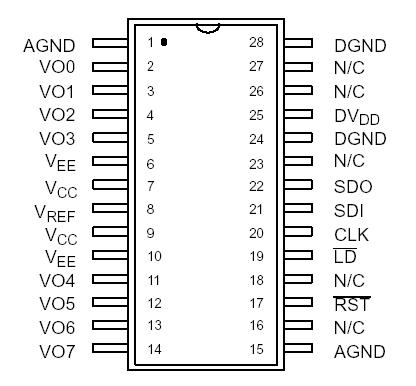

The MP7612 provides eight independent 12-bit resolution Digital-to-Analog Converters with voltage output amplifiers and a 3-wire standard serial digital address and data port.

MP7612 DAC matching for B grade versions is 0.7 LSB across all codes. Accuracy of +0.75 LSB for DNL and +1 LSB for INL is also achieved for B grades. The output amplifier is capable of sinking and sourcing 5mA, and the output voltage settles to 12-bits in less than 30ms (typ.).

The MP7612 is equipped with a serial data (3-wire standard) m-processor logic interface to reduce pin count, package size, and board space.

Built using an advanced linear BiCMOS, MP7612 offers rugged solutions that are latch-up free, and take advantage of EXAR's patented thin-film resistor process which exhibits excellent long term stability and reliability.
