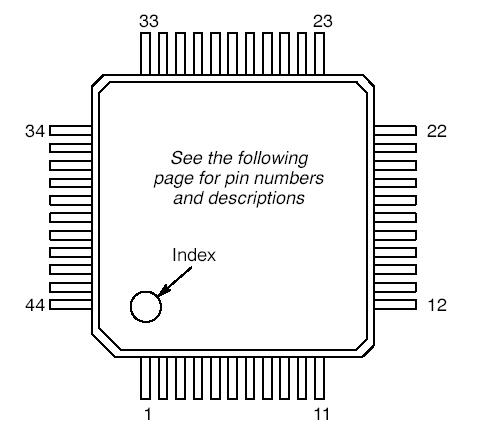

MP7611

V_CC to AGND  . . . . . . . . . . . . . . . . . . . . . . . . . . .+16.5 V
V_EE to AGND  . . . . . . . . . . . . . . . . . . . . . . . . . . . .-16.5 V
DV_DD to DGND  . . . . . . . . . . . . . . . . . . . . . . . . .  .+6.5 V
V_REF to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . +7.0 V
Analog Outputs & Inputs
Infinite Shorts to V_CC, V_EE, DV_DD, AGND and DGND
(provided that power dissipation of the package spec is
not exceeded)
AGND to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . +1 V
(Functionality guaranteed for ¦0.5 V only)
Digital Input & Digital Output Voltage to:
DVDD  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +.5 V
DGND  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-.5 V
Operating Temperature Range
Extended Industrial  . . . . . . . . . . . . . .-40°C to +85°C
Military . . . . . . . . . . . . . . . . . . . . . . . -55°C to +125°C
Maximum Junction Temperature . . . . .  . . . . . . . .150°C
Storage Temperature Range   . . . . .  -65°C to +150°C
Lead Temperature (Soldering, 10 sec)  . . . . . . .+300°C
Package Power Dissipation Rating to 75°C
PQFP, PGA, PLCC . . . . . . . . . . . . . . . . . . . . . . . . .800mW
Derates above 75°C . . . . . . . . . . . . . . . . . . . 11mW/°C
NOTES:
1 Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation at or above this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
2 Any input pin which can see a value outside the absolute maximum ratings should be protected by Schottky diode clamps (HP5082-2835) from input pin to the supplies. All inputs have protection diodes which will protect the device from short transients outside the supplies of less than 100mA for less than 100ms.

The MP7611 provides eight independent 14-bit resolution Digital-to-Analog Converters with voltage output amplifiers and a parallel digital address and data port.

Built using an advanced linear BiCMOS, MP7611 offers rugged solutions that are latch-up free, and take advantage of EXAR's patented thin-film resistor process which exhibits excellent long term stability and reliability.

A standard m-processor and TTL/CMOS compatible 14-bit input data port loads the data into the pre-selected DACS.

MP7611 can easily be interfaced to a data bus, and digital readback of each channel is available.

Typical DAC matching for C grade versions is 1.5 LSB across all codes. The output amplifier is capable of sinking and sourcing 5mA, and the output voltage settles to 12-bits in less than 30ms (typ.).
